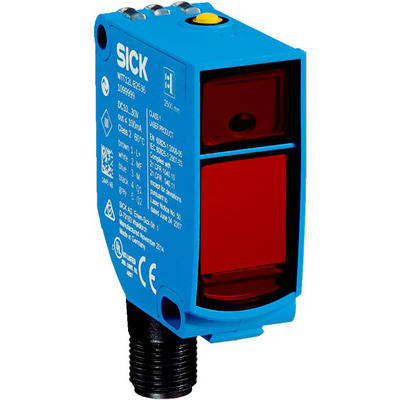

WTT12L-B2562 1072637

Name: WTT12L-B2562 1072637
Brand: THIẾT BỊ TỰ ĐỘNG HÓA ANTECH
SKU: 14615
Availability: InStock
Rating: 5 (1 reviews)

Khuyến mãi khi mua ONLINE hoặc gọi Hotline

1 Miễn phí vận chuyển toàn quốc
2 Miễn phí khảo sát tư vấn
3 Áp dụng cho khách hàng gọi điện, đến trực tiếp hoặc chát!

Yêu cầu gọi lại Gọi điện xác nhận và nhân viên tư vấn ngay

Category: Mẫu

Thông tin chi tiết

1072637

WTT12L-B2562

Specifications

Primary brand

SICK

Main function

Sensor (Photo-electric)

Product series / family name

PowerProx

Functions

Photo-electric proximity sensor
Single Teach-in

Design

class 1 laser
background suppression

Distance

3800mm nominal distance to light spot

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Sensing distance

100mm-3.8m

Field of view

18mm (light spot diameter)

Frequency

100Hz

Light Color

Red

Wavelength

658 nm

Shape

Rectangular

Connection type

Pre-equipped with 5-pin M12 connector

Protection functions

Reverse polarity
Short-circuit
Interference suppression

Operating mode

Light/dark switching

Digital outputs

1 x digital output (Push-pull/PNP/NPN switching output; 100mA)
1 x digital output (Push-pull transistor)

Response time

5ms / 0.005 s

Degree of protection

IP67

Dimensions

W23.5mm x H76mm x D55.8mm

Material

Plastic VISTAL (housing)
Plastic PMMA (optics material)

Ambient air temperature for operation

-35…+50 °C

Visual position indicator

yellow LED (output state)
green LED indicator (stability)

Current consumption

70mA

eClass code

(ECl@ss 5.0) 27270904
(ECl@ss 5.1.4) 27270904
(ECl@ss 6.0) 27270904
(ECl@ss 6.2) 27270904
(ECl@ss 7.0) 27270904
(ECl@ss 8.0) 27270904
(ECl@ss 8.1) 27270904
(ECl@ss 9.0) 27270904

ETIM code

(ETIM 5.0) EC002719
(ETIM 6.0) EC002719

Manufacturer product status

Commercialized

UNSPSC code

(UNSPSC 16.0901) 39121528

Compliant with standard(s)

EN 60947-5-2
DIN 5033

Class

Class III
