Máy tính mini công nghiệp không quạt i7-1165G7 Bộ xử lý 4K UHD

Fanless Industrial PC is noiseless and resistant to dust, debris and corrosion, reducing maintenance costs and minimizing downtime. The Mini PC is powered by Intel Core I7-1165G7 quad-core, octa-threaded processor with a core frequency of up to 4.7GHz, a significant improvement over the previous generation core to give you a fast experience. It can be used for online classes live, auto optical inspection, machinery automation, ePolice infotainment, surveillance or image processing equipment and healthcare industry. The Industrial Mini Pc is absolutely a good choice to be your office assistant and home entertainment tool. In addition, with the rich interfaces of 2*RJ45 LAN,1* HDMI, 4*USB3.0 and 2*USB2.0,  there is an easy interconnection between devices.

Product Details

Processors: Intel Core i7-1165G7, 12M Cache, 4 Cores 8 Threads, up to 4.70GHz
Processor Graphics: Intel® Iris® Xe Graphics
Memory Type: SODIMM DDR4 2x memory slots, max support to 32GB
Storage: 1x M.2 SSD NVMe 2280 ( pre-installed this type SSD ) 1x M.2 SSD SATA 2242/2260/2280
External I/O: 1x Power Button, 1x Audio combo jack ( support MIC in and heaphone out ), 1x 4Pins power input connector, 2x USB3.0,4x USB2.0, 2x COM DB9 ( support RS232/RS422/RS485 adjustable ), 2x 2.5GbE RJ45 LAN intel i225V, 1x HDMI, 2x USB2.0, 1x ATX/AT switch ( switch to AT to set auto-power on function ), 1x EXT IO ( support extend 4x RS232 (3 lines) ; 10 lines GPIO; 1x Power Siwtch ), 5x Antennas connectors ( for WiFi/3G 4G 5G )
Internal I/O: 2x SODIMM DDR4 sockets, 1x M.2 2280 NVME, 1x M.2 SATA 2242/2260/2280, 1x M.2 2230 socket for WiFi/BT module, 1x M.2 3042/3052 socket for 3G/4G/5G module, 2x EXTIO sockets, 1x SIM slot
OS Support: Windows 10, WES10, LINUX
Other funcion: Support watchdog, PXE, WOL, auto-power on
Working Temp.: ﹣20℃to + 60℃
Storage Temp.: ﹣30℃to + 70℃
Storage Humidity: 10% – 90% Non-condesing
Working Voltage: DC 9V-36V
Dimension: 300x155x50mm
Weight: 2.0KG

We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ Data Protection
☑ And so on…

Packing List:

Normally we use the carton box to pack,

1 x Mini PC

1 x Power adapter(correct power plug based on buyer’s country)

1 x WiFi modlue with dual antennas(barebone not include WiFi)

1 x VESA bracket(some model not support)

1 x Sata power cable and data cable. (some model just support one Msata)

1 x Warranty card & user manual

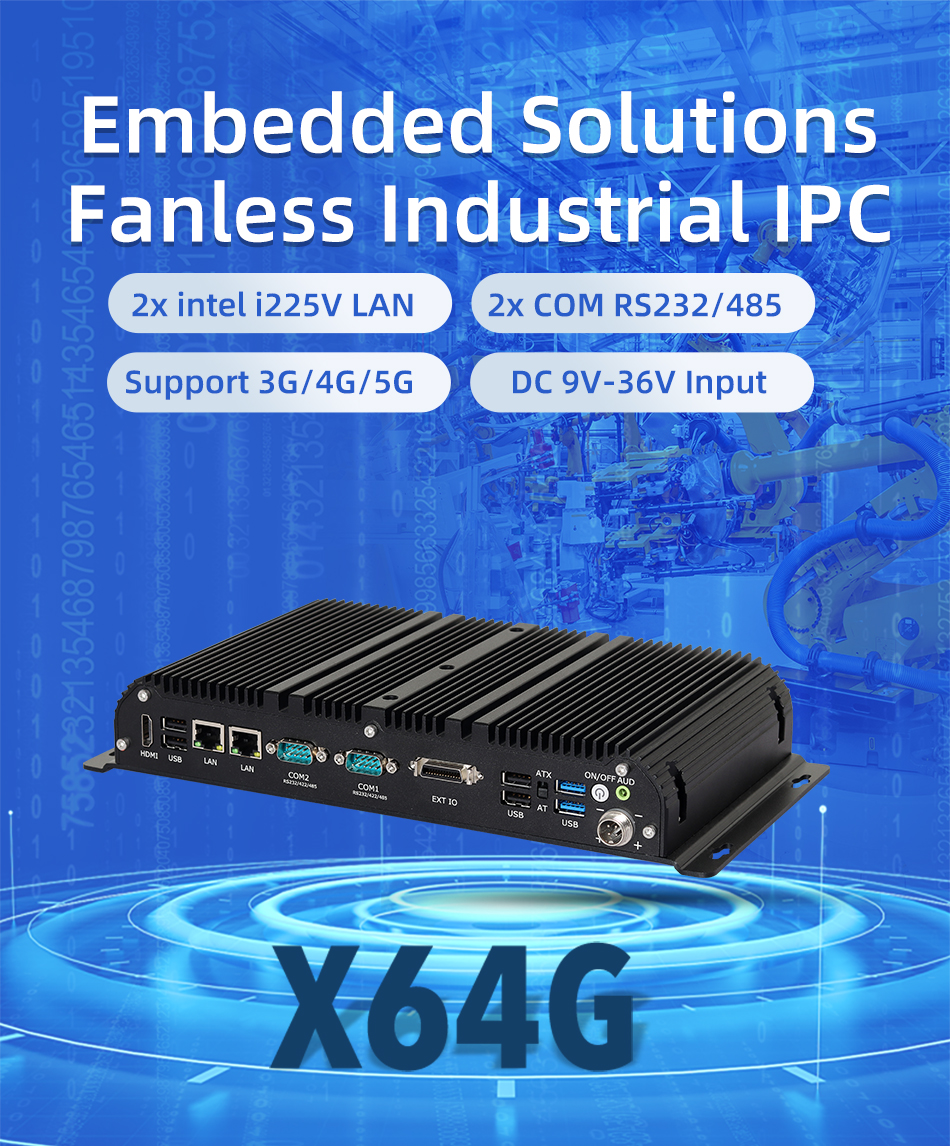

This is a Fanless Embedded Industrial Computer, integrated with Intel Core i7-1165G7.  It can meet a variety of needs in demanding environments.    Based on the fanless design, it can run more stably and reliably in terminals, multimedia and for other industrial applications.    In addition, with the rich interfaces, there is an easy interconnection between devices.

Features of Mini Computer.

The Industrial Mini PC is powered by Intel Core I7-1165G7 quad-core, octa-threaded processor with a core frequency of up to 4.7GHz, a significant improvement over the previous generation core to give you a fast experience.

The Fanless Embedded Industrial Computer is Industrial Grade Protection,dust, moisture and corrosion prevention

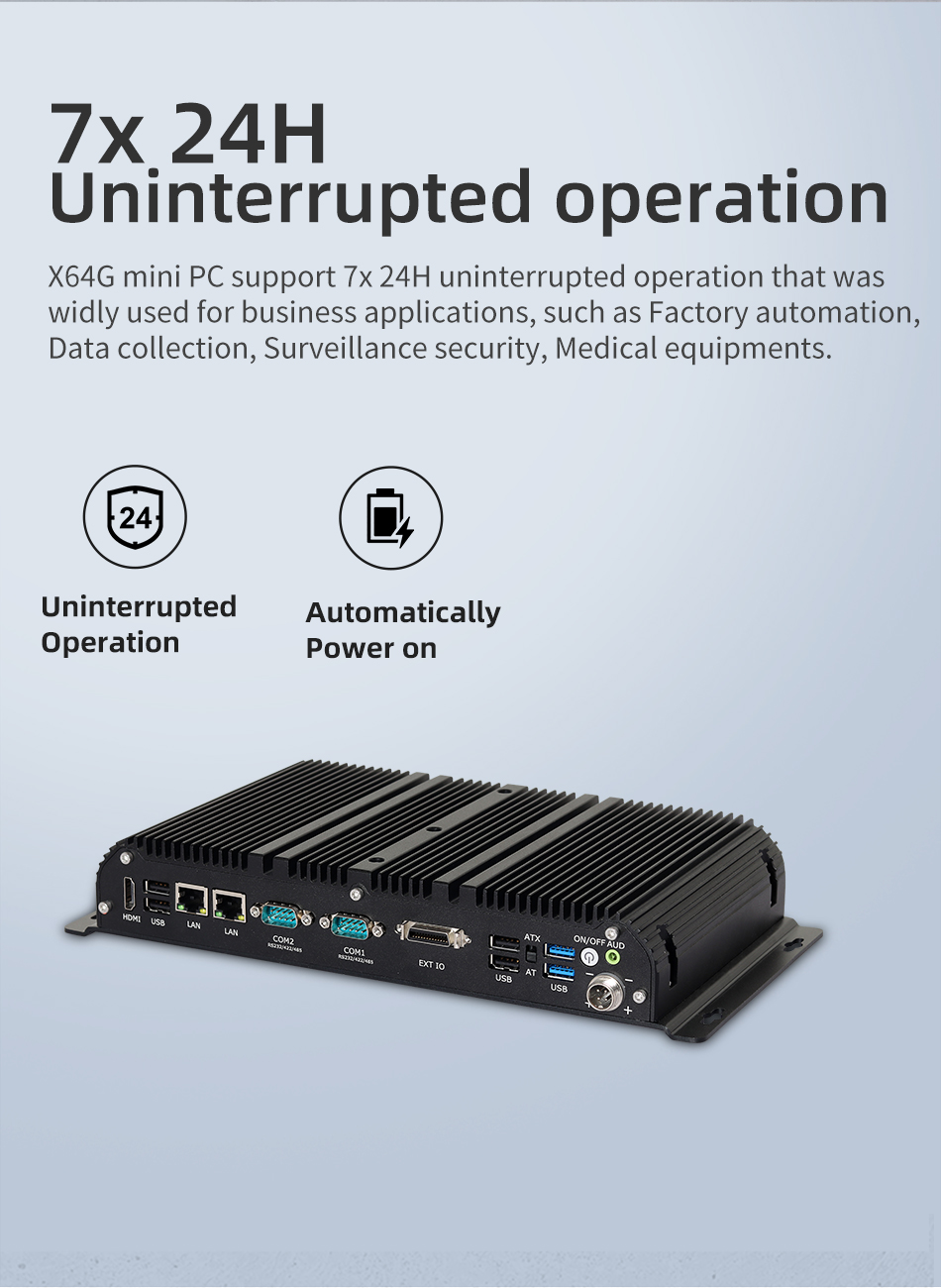

The Mini PC can uninterrupted operation.

This industrial computer uses an aluminum alloy case, fanless efficient heat dissipation, dust protection and noise-free.

The Mini computer supports 2x SODIMM DDR4 RAM Max to 32 GB, 1x M.2 NVME 2280 Size and 1x M.2 SATA 2242/2260/2280 Size.

The Mini PC system supports Windows 10, Linux, Fedora/CentOSS/Ubuntu.

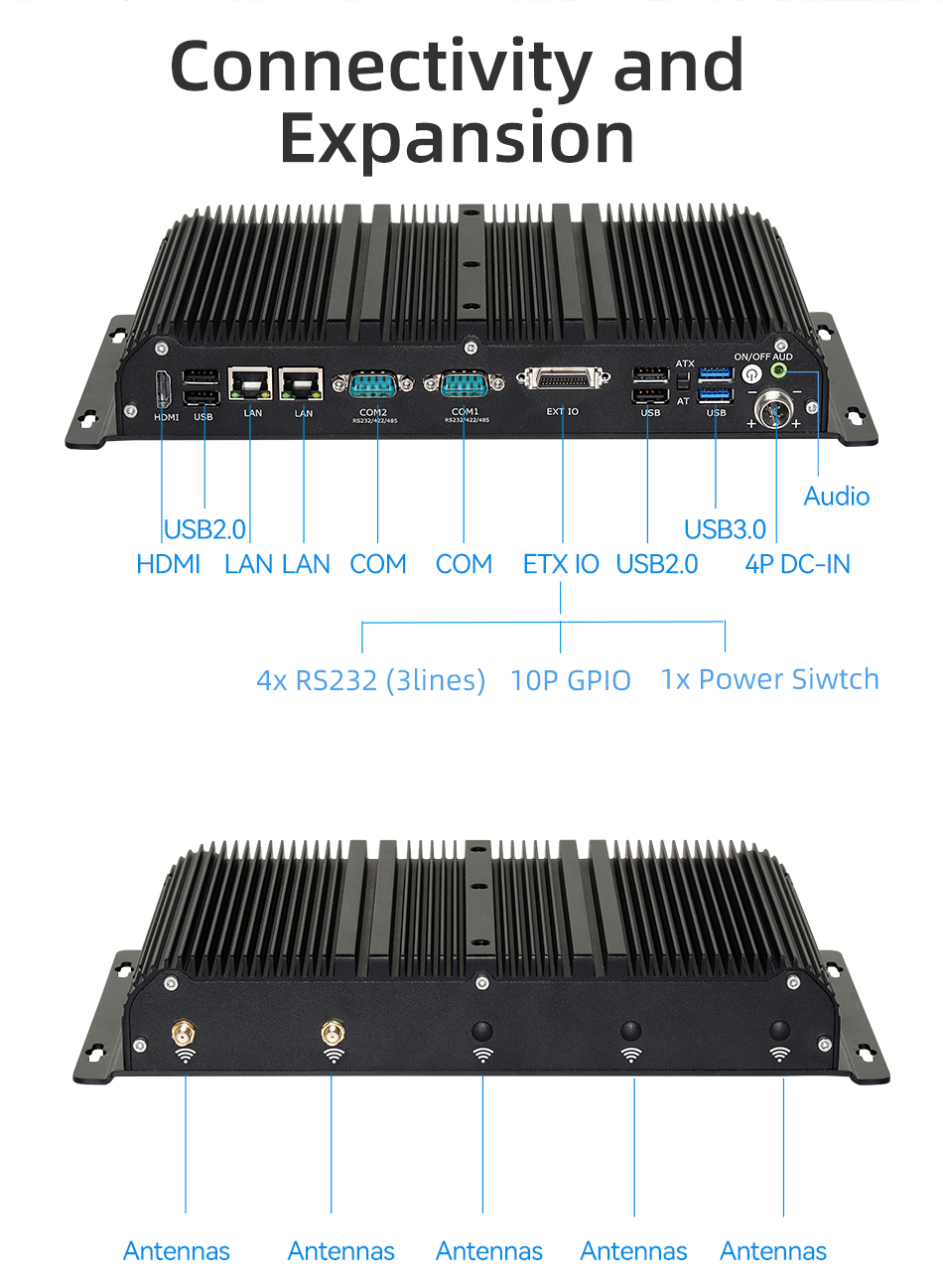

The Industrial Mini PC has rich interfaces  there is an easy interconnection between devices.

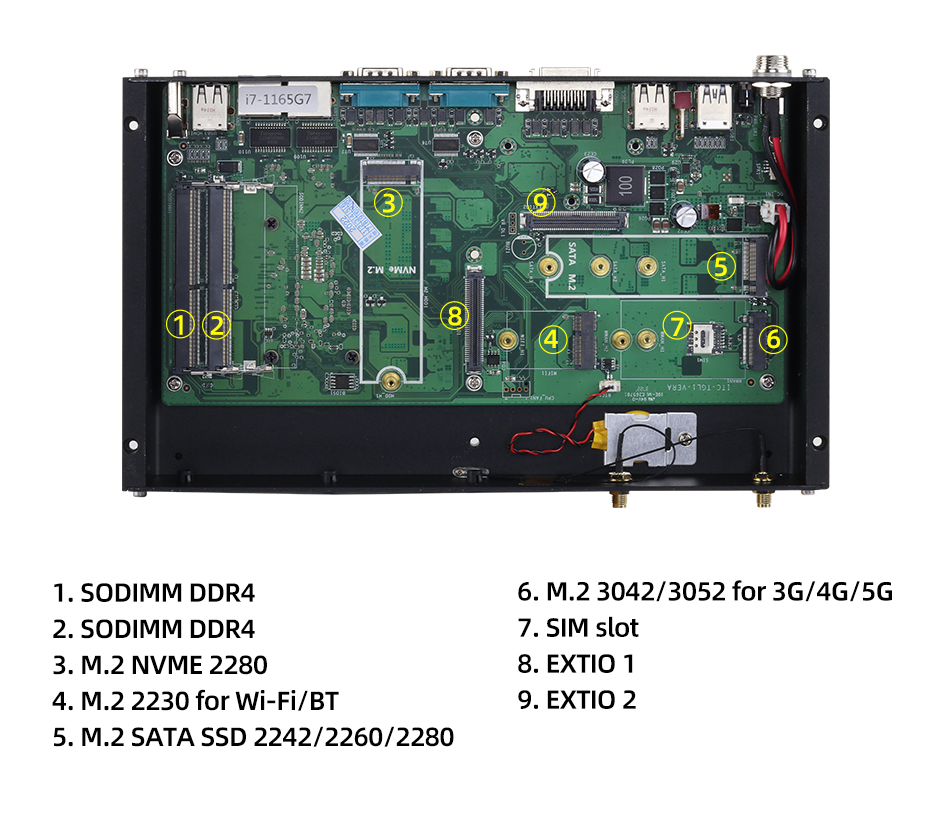

The Internal structure of the industrial Mini PC.
