Máy tính mini công nghiệp J4125 Dual Ethernet Dual COM

Product Detials

CPU:

Intel Celeron J4125

4cores 4thread, L2 Cache, 4MB

GPU:Intel UHD Graphics 600

Memory:

1*DDR4 SODIMM, 2400MHz
Max: 8GB
Storage(Hard Disk):
HDD: SATA2.5″HDD
SSD:1*mSATA socket
Video Support:
1*VGA 1920*1080@60Hz
1*HDMI 4096*2304@24Hz
support synchronous and asynchronous display
Ethernet:
2*10/100/1000 Mbps Realtek 8111E
support wake-on LAN
Expansion:
1*Mini PCIE
expandable WIFI/3G/4G module
I/O:
2*RS-232 COM
4*USB3.0
2*USB2.0
OS:

Windows 10, Ubuntu, LINUX, etc.

Cooling System :

Fanless cooling

Power:

DC 12V 3A

Material:

Aluminum alloy shell

Color:

Black

Operating Temperature:

-20℃ to 65℃

Humidity:

5% to 95%

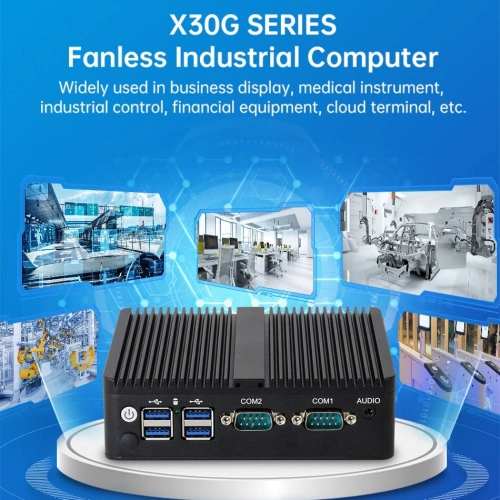

X30G industrial Mini Computer features an Intel Celeron J4125 processor that delivers robust performance for diverse usage scenarios. It has a DDR4 channel (up to 8GB) and supports an mSATA socket and a 2.5″ HDD/SSD for storage.

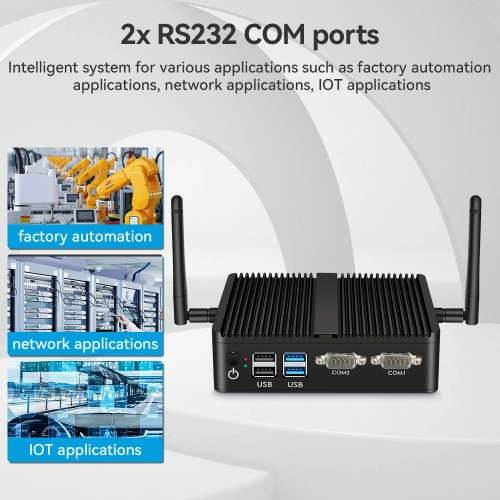

This Mini PC features dual RS232 COM ports, which enable the implementation of intelligent systems for diverse applications such as factory automation, networking, and the IOT.

It has dual Realtek 8111GbE LAN ports. And it supports wake-on LAN,Teaming and PXE.

With one HDMI and one VGA, the Industrial Computer supports synchronous and asynchronous output display.

X30G supports a variety of operating systems – Windows, LINUX, Ubuntu, Centos and other more OS.

Utilizing the aforementioned characteristics, this mini PC is versatile and can be applied in a variety of settings, including automated manufacturing, commercial display, self-service terminals, intelligent robotics, e-police, healthcare, and education.
