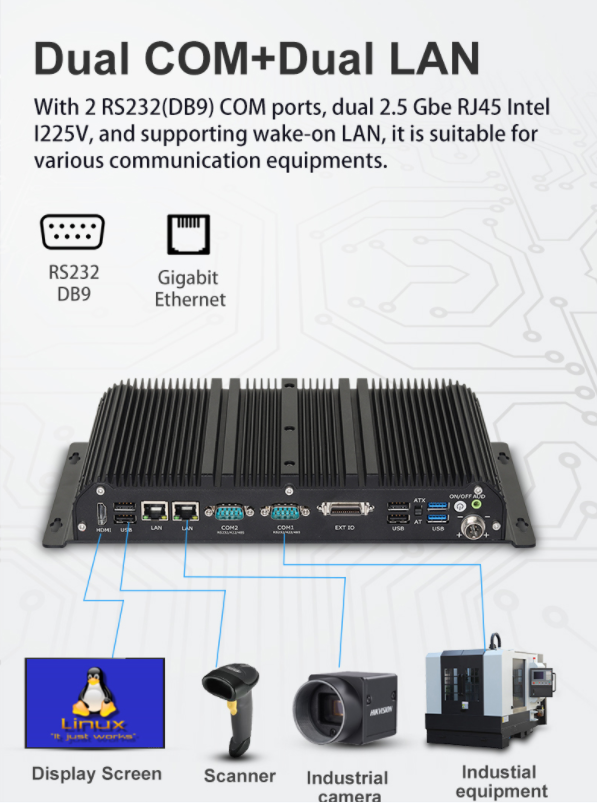

This Industrial Mini Pc comes with Intel dual gigabit network card, and two standard RS232 COM interface, support network wake up, can be used in a variety of communication devices. The Mini PC supports dual-channel DDR4 memory, M.2SATA, M.2 NVME 2280, and 2.5-inch HDD/SSD hard drives, ensuring compatibility and stability with both speed and capacity. The fuselage is designed without fan for quieter use and to protect the use of internal components. It is also very stable for a long time.

Product Details

CPU: Intel Core i7-1165G7

Memory:  support Dual-channel DDR4 SODIMM

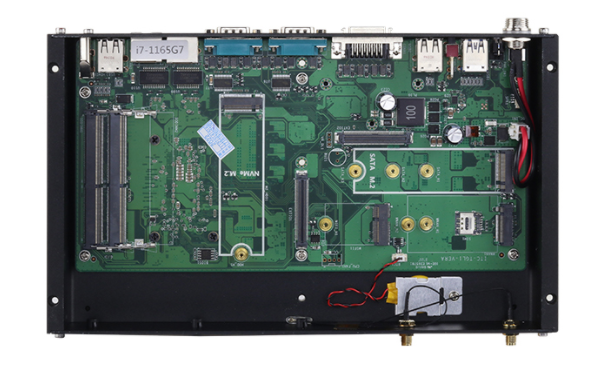

Hard Disk(SSD): M.2 2242/2260/2280 SATA*1, M.2 2280 NVME*1, 2.5inch HDD/SSD*1

Display: HDMI*1
OS Supported: Window10, WES 10, LINUX
LAN:2.5 Gbe RJ45 Intel I225V*2

I/O Ports: 2*USB3.0, 4*USB2.0, 1*HDMI, 2*DB9 COM, 1*4P Power Port, 1*Audio, 5*Wi-Fi(for Wi-Fi/BT/3G/4G/5G), 1* Expansion                              IO(Integrated 4-way 3-wire COM, 10-way GPIO, 1 remote switch)

Expansion: M.2 3042/3052(3G/4G/5G module,with SIM slot); M.2 2230(Wi-Fi Bluetooth)

Other: support WatchDog, diskless start

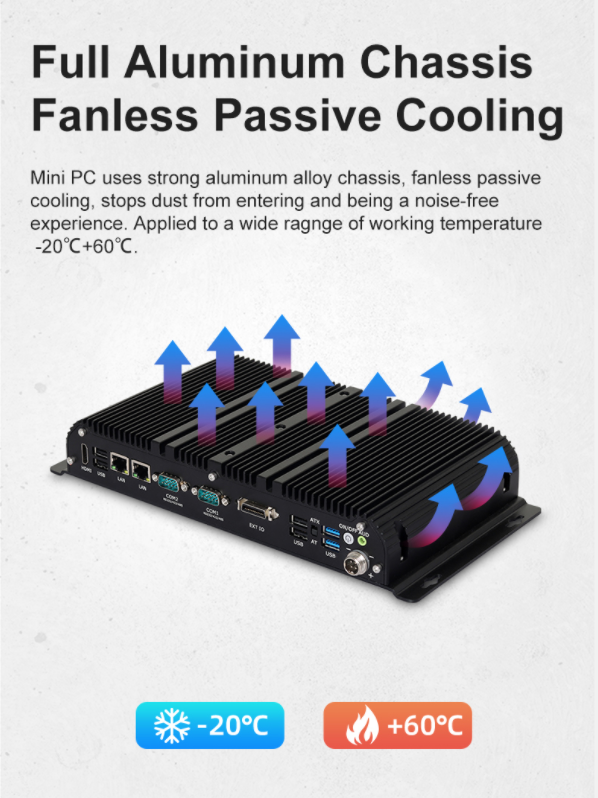

Cooling System: Fanless Passive Cooling

Material: Aluminium alloy

Operating Temperature: -20~60℃

Storage Temperature: -30℃~ 70℃

Relative Humidity: 10%~90% (without condensation)
