Máy tính mini công nghiệp Linux không quạt N5100 Dual LAN

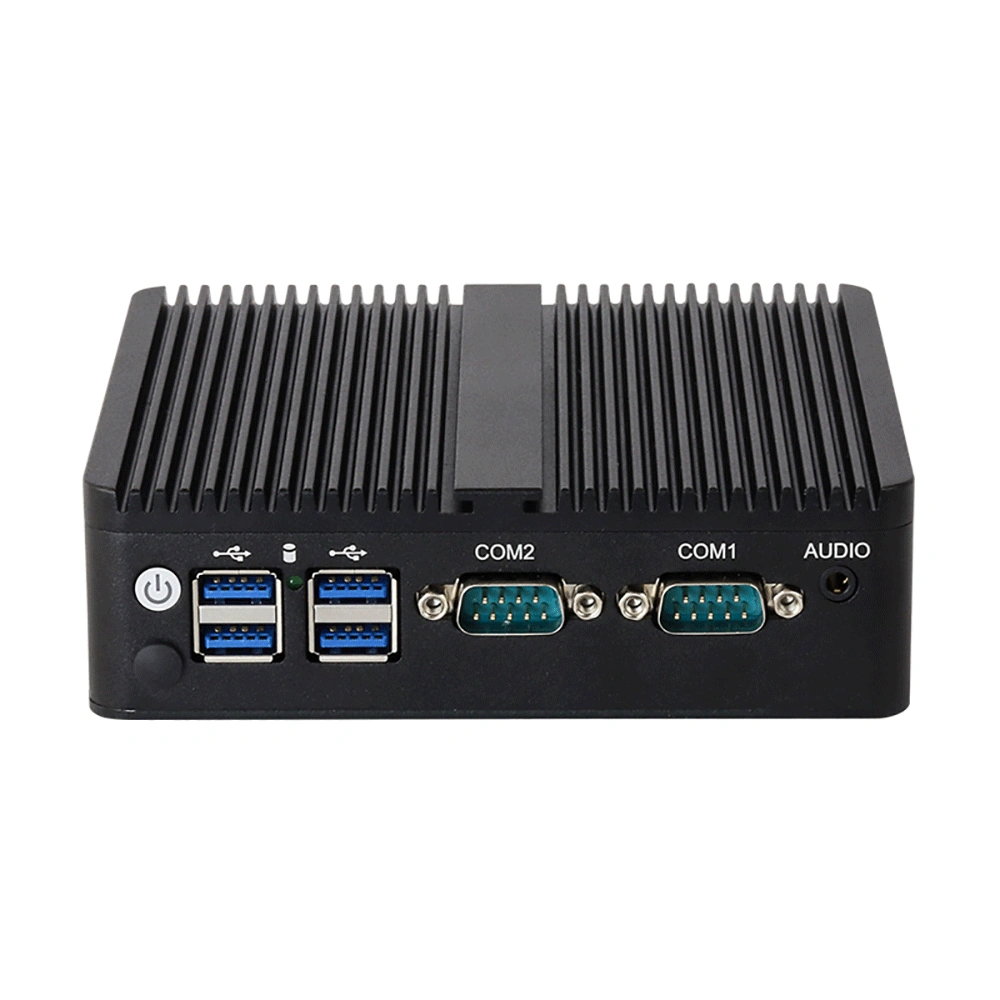

This is a fanless Mini Industrial Pc which comes with Intel Celeron J4125 or Intel Celeron N5100. The mini Industrial Computer is equipped with dual LAN(2* RJ45) and four com(1* RS232/RS485+3*RS232). The Industrial Mini Pc fits one M.2 NGFF 2280 and one 2.5-inch SATA, letting you create your own custom storage solution to meet your needs. With DDR4 2400MHz memory that is 1.5X faster and 20% more energy efficient than DDR3 1600MHz memory, the Fanless Industrial PC offers excellent performance for daily computing tasks. It supports to be installed with Windows 10, Linux, Ubuntu, Centos, etc. And this XCY Mini PC has been tested for high and low temperatures, signal interference and vibration tests to adapt to demanding environments.

Product Details

CPU: Intel Celeron N5100 (4 core 4 threads,4MCache,1.10GHz, upto 2.80GHz, TDP:6W)

Memory(RAM): 1*260-pin SO-DIMM DDR4, Max up to 16GB

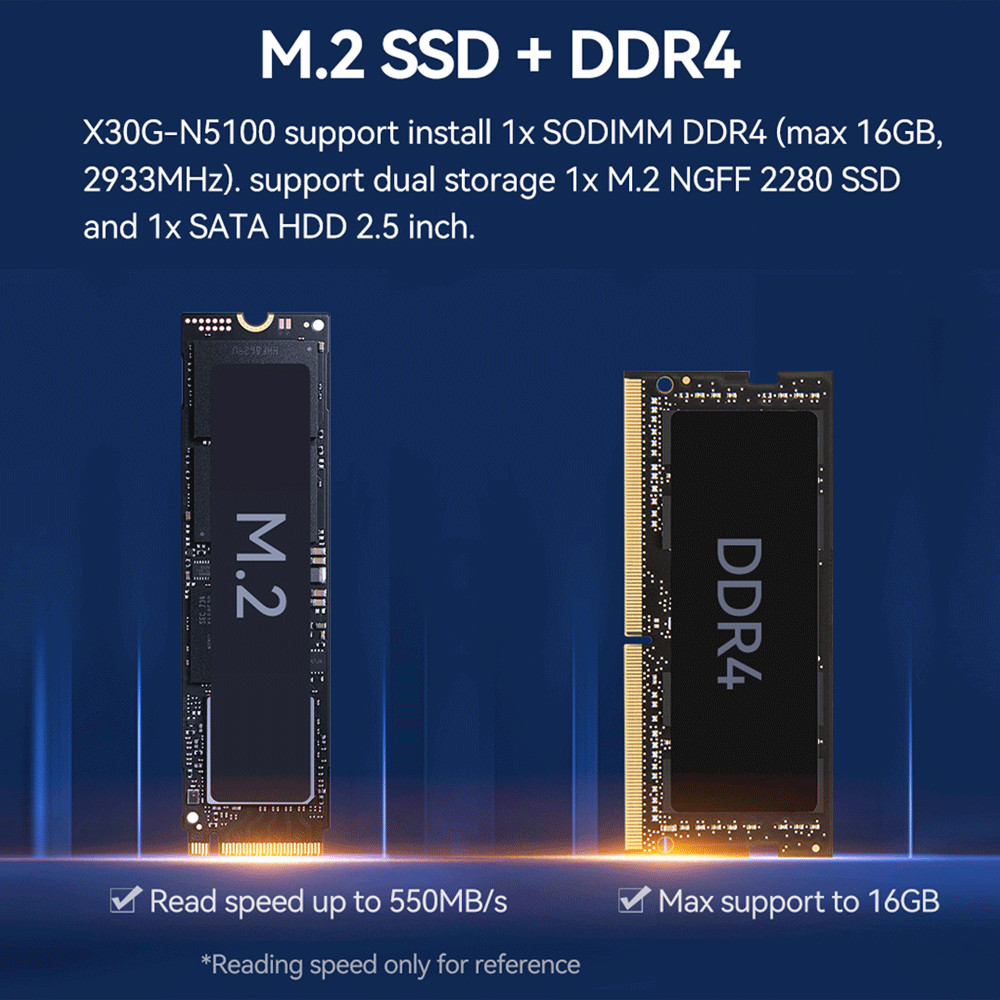

Storage: 1* M2 NGFF 2280 SSD + 1* 2.5 inch SATA SSD / HDD

Dual Display: HDMI+VGA, Support for Dual-line Synchronous or Independent display

OS Supported: Windows10/Windows11, Linux, Ubuntu, CENTOS, etc.

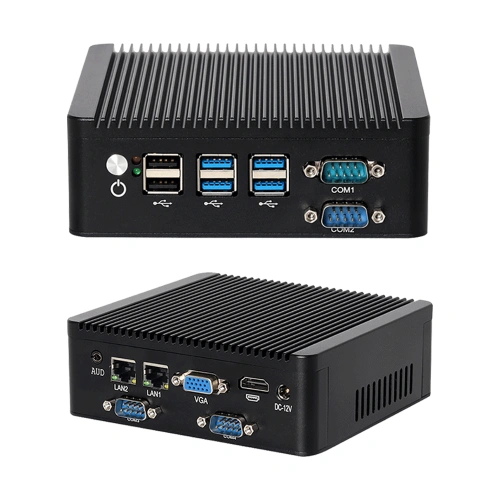

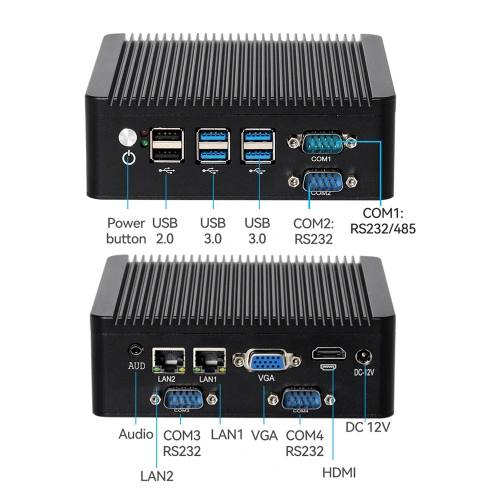

I/O ports: 2*RJ45, 4*COM(1* RS232/RS485+3*RS232)

1*HDMI+1*VGA, 4*USB3.0+2*USB2.0, 1*AUD, 1*DC-IN

Audio: Adopting Realtek ALC662 Chip, supports dual channels, stereo, and line out

Ethernet port: 2* RJ45 10/100/1000 RTL8111H

WIFI: 1*M.2 Slot, Support WiFi or 2 in 1 WIFI & BT(Optional)

Features: Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss(Auto Power On).

Power Consumption: DC-IN 5.5*2.5DC 12V-3A/ 36W or DC 12V-5A/ 60W (AC TO DC, 100~ 240V）

Custom Supported: 24V, Din Rail, 4* RS485, etc.

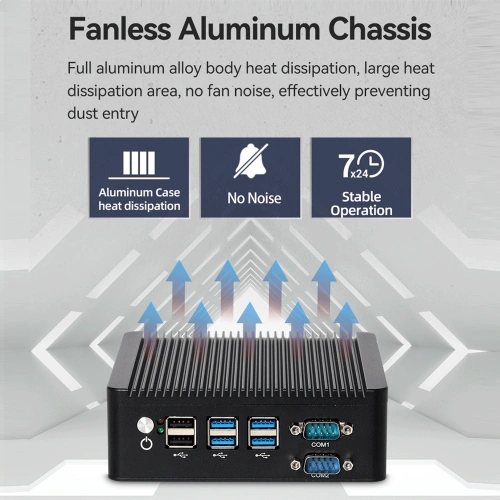

Cooling System: Fanless Passive Cooling with Heat Sink

Mounted: Wall-mounted/Desktop/VESA

Chassis Material: Aluminum alloy

Operating Temperature: -20-60℃

Storage Temperature: -30℃-70℃(15- 35℃ recommended)

Relative Humidity: 5%- 95% without condensation

Mini PC, Home & Office PC, Gaming PC, Industrial PC with RS232/ RS485, Linux Ubuntu PC, 4 LAN / 6LAN Firewall PC are all available in our store, Bookmark our store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.

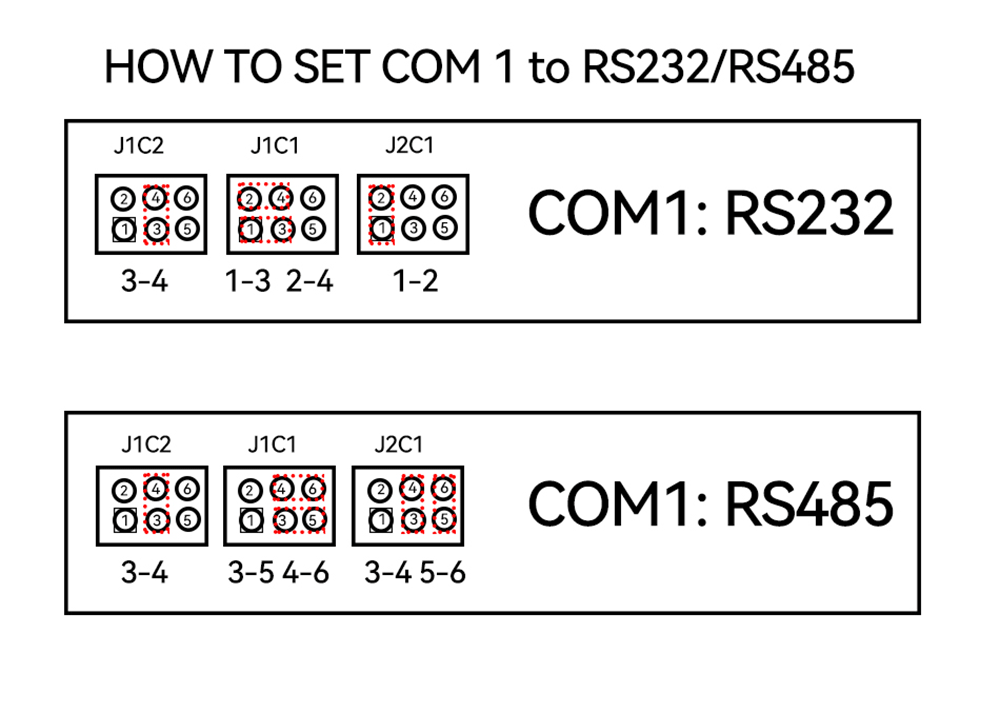

One RS485 can be set by jumper setting on the motherboard.
