Máy tính mini công nghiệp không quạt J4125 RS232 RS485 GPIO

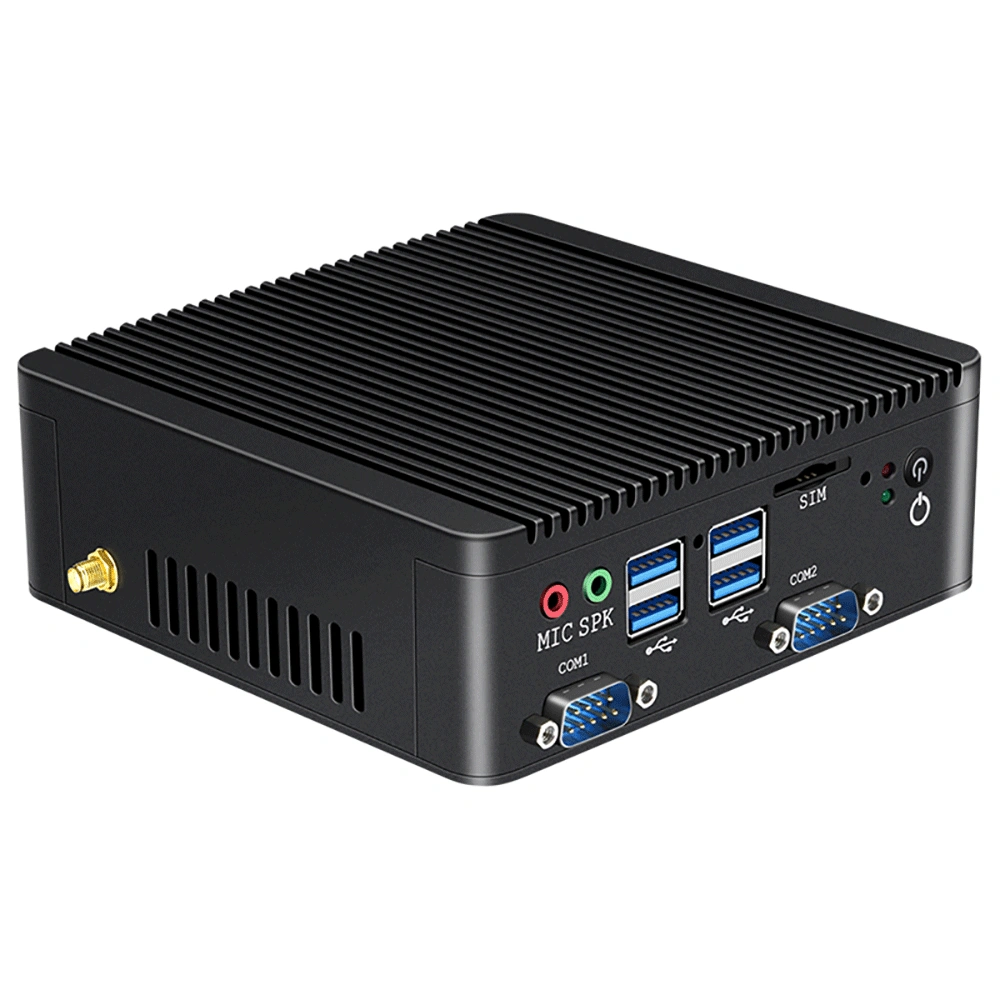

This is an embedded industrial mini PC which onboard with Intel Celeron J4125 or Intel Pentium N5000. The mini Industrial Computer comes with dual LAN(2* RJ45) and six com(2* RS232/RS485+4*RS232). It can meet a variety of needs in demanding environments. Based on the fanless Mini PC design, it can run more stably and reliably used in buisiness, banking, securities, industrial automation, and other fields. This mini PC supports to be installed with Windows 10, Linux, Ubuntu or Centos, etc. With the rich interfaces of 1* HDMI, 1*VGA, 2*RJ45, 6*COM, 6*USB,  there is an easy interconnection between devices.

Product Details

CPU: Intel Celeron J4125, Intel Pentium N5000

Memory(RAM): 1*260-pin SO-DIMM DDR4, Max up to 8GB

Storage: 1* mSATA SSD + 1* 2.5 inch SATA SSD / HDD

Dual Display: HDMI+VGA, 4K@ 60Hz, Support for Dual-line Synchronous or Independent display

OS Supported: Windows10/Windows11, Linux, Ubuntu, CENTOS, etc.

I/O ports: 2*RJ45, 6*COM(2* RS232/RS485+4*RS232) 1*HDMI+1*VGA, 2*USB3.0+4*USB2.0, 1*SPK, 1*DC-IN

Extention: 1*Mini-PCIE, 8*GPIO(2*5pin), 1*TPM 2.0 (Optional)

Ethernet port: 2* RJ45 Intel i225V 2.5GbE

Wireless: 1*Mini-PCIE, Support WiFi or 2 in 1 WIFI & BT, 3G/4G LTE (Optional)

Other: Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss(Auto Power On).

Power Consumption: DC-IN 5.5*2.5 DC 12V-3A/ 36W(AC TO DC, 100~ 240V

Custom Supported: 24V, Din Rail, 6* RS485, GPIO, etc.

Operating Temperature: -20-60℃

Storage Temperature: -30℃-70℃(15- 35℃ recommended)

Relative Humidity: 5%- 95% without condensation

Mini PC, Home & Office PC, Gaming PC, Industrial PC with RS232/ RS485, Linux Ubuntu PC, 4 LAN / 6LAN Firewall PC are all available in our store, Bookmark our store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.
