Máy tính mini công nghiệp không quạt 12V/24V/36V i7 1195G7 GPIO

This multifunctional Mini Industrial Pc is designed to meet the demanding requirements of various industries. Its compact system is equipped with powerful processors such as the J4125, J6412, N100, i5 8260U, i5 10310U, i5 1135G7, i7 8560U, i7 10510U, and i7 1195G7, which offers excellent performance for complex tasks. Dual RJ45 Ethernet ports ensure reliable network connectivity, while 6 COM (RS232/ RS485) ports allow direct connection to devices requiring serial communication.
Equipped with expandable 10 GPIO (General Purpose Input/Output) ports, this Embedded Industrial PC enables itself to be connected to external sensors, actuators, or other peripherals to enhance flexibility and control. This feature design allows it for various applications, from automation systems to IoT solutions.
Additionally, the mini fanless Industrial Computer supports advanced mobile connectivity options, including 3G, 4G, and 5G LTE. This feature ensures that the system is wirelessly connected and operational even in remote or challenging environments, providing a solid foundation for data transfer and real-time communications.
In summary, this Fanless Industrial PC is an ideal choice to provide businesses with a compact but capable computing solution tailored for industrial-grade applications.

Product Details

CPU: Intel Celeron J4125 (4 core 4 threads, 4M Cache, 2.00GHz, up to 2.70GHz, TDP: 10W)
Intel Celeron J6412 (4 core 4 threads, 1.5M Cache, 2.00GHz, up to 2.60GHz, TDP: 10W)
Intel N100 (4 core 4 threads, 6M Cache, up to 3.40GHz, TDP: 6W)
Intel Core i5 8260U (4 core 8 threads, 6M Cache, 1.60GHz, up to 3.90GHz , TDP: 15W)
Intel Core i5 10310U (4 core 8 threads, 6M Cache, 1.70GHz, up to 4.40GHz , TDP: 15W)
Intel Core i5 1135G7 (4 core 8 threads, 8M Cache, 4.20 GHz , TDP: 12W~28W)
Intel Core i7 8560U (4 core 8 threads, 8M Cache, 2.00 GHz , up to 4.10GHz, TDP: 15W)
Intel Core i7 10510U(4 core 8 threads, 8M Cache, 1.80 GHz , up to 4.90GHz, TDP: 15W)
Intel Core i7 1165G7 (4 core 8 threads, 12M Cache, 4.70 GHz , TDP: 12W~28W)
Intel Core i7 1195G7 (4 core 8 threads, 12M Cache, 5.00 GHz , TDP: 12W~28W)

Graphics Card: Intel® Iris® Xe Graphics/Intel UHD Graphics
Memory(RAM): 1x DDR4 260-pin SO-DIMM, Max up to 8GB(J4125)
1x DDR4 260-pin SO-DIMM, Max up to 16GB(N100)
1x DDR4 260-pin SO-DIMM, Max up to 32GB(J6412)
2x DDR4 260-pin SO-DIMM, Max up to 64GB(Other CPU)
Hard Disk(SSD): 1 x M.2 2242/2260/2280 SATA+1 x M.2 2280 NVME+ 1*2.5″ HDD/SSD SATA
128GB/512GB/1TB/2TB SSD optional, 160GB/500GB/1TB HDD optional

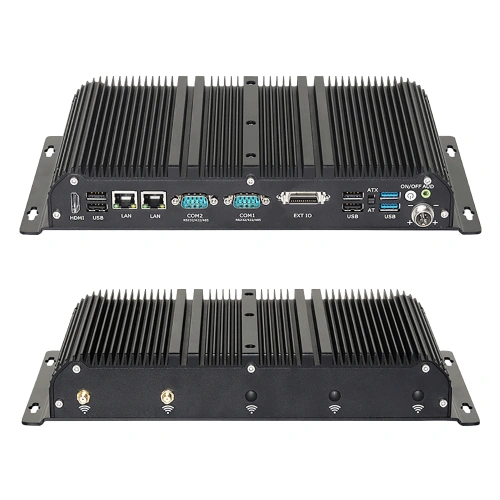

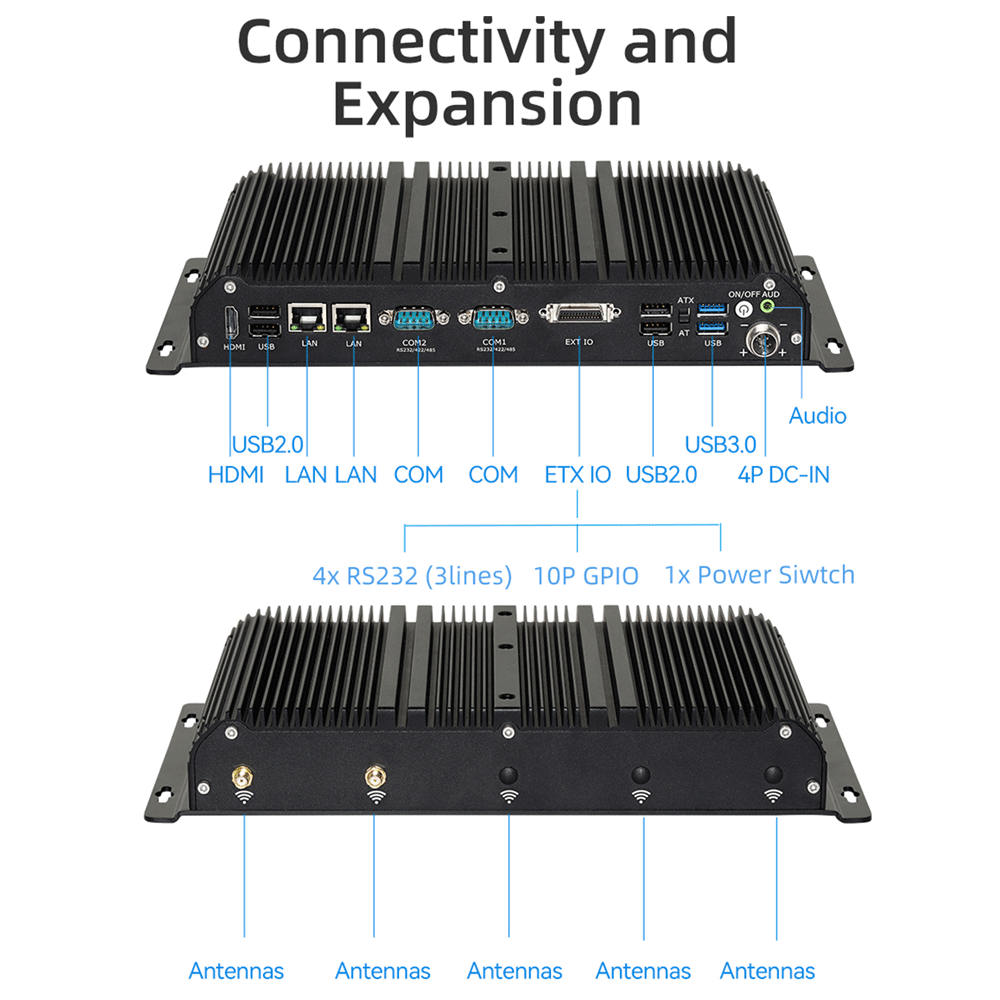

I/O Ports: 2*USB 3.0 + 4*USB 2.0, 1*HDMI ,
2*RS232/RS485, 2*RJ45, 1*4pin Aviation Jack for power supply ,1*AUD,

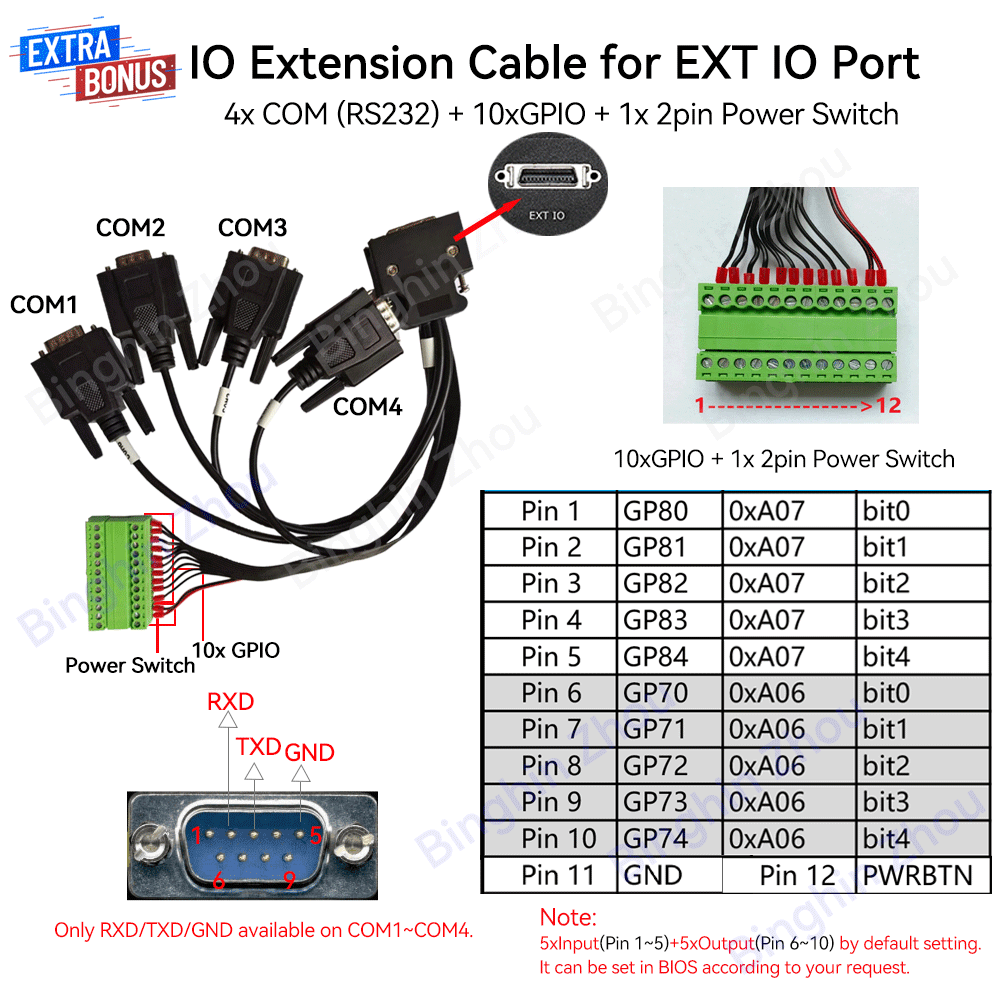

1*Extension I/O(4*RS232,10*GPIO, 1*Remote Switch),
5*Antenna Ports for WIFI/BT/3G/4G/5G Lte

HDMI: Max Resolution 4K
Ethernet port: 2 x RJ45 Intel i225V 2.5GbE( 2 more Ethernet Ports can be extended on the motherboard)
WIFI: Module with dual antennas(Or more)
Audio: Realtek ALC662 Audio Control Chip, 2 Channels, Stereo, Line out

Power: Input: AC 100-240V 50-60Hz, Output: DC 12V-3A 36W/5A 60W
OS Supported: Win 10/8 /7 Linux, Ubuntu, Openelec, etc.
Features: Support Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC power loss(Auto Power on), Watchdog Timer
Hardware& Software(Customized).
Cooling System: Fanless passive cooling with heat sink
Chassis Material: Aluminum Alloy
Dimensions: 300 x 155 x 50 mm

Operating Temperature: -20~60℃
Storage Temperature: -20~85℃(15℃-35℃  Recommended)
Relative Humidity: 10%~90% (without condensation)

Equipped with 2x 2.5GbE i225V network cards,6x COM ports(2 COM +4 Expandable COM), this rugged Industrial PC offers

an embedded solution for industrial automation.

This Industrial Mini Pc supports 7x 24H uninterrupted operation, and auto power on. It is
widely used for business applications, such as factory automation,
data collection, surveillance security, and medical equipment.

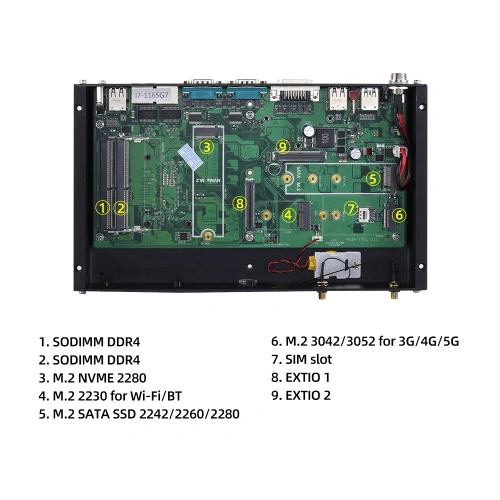

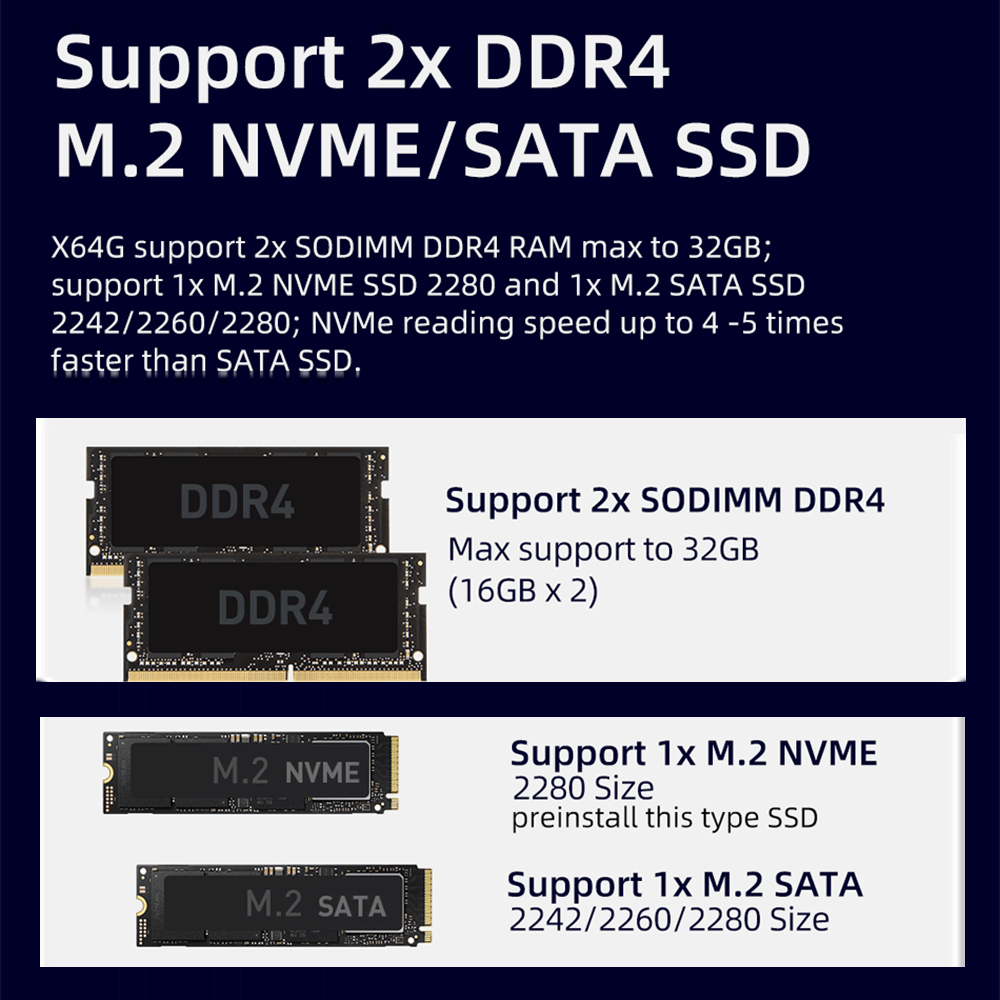

This fanless mini industrial PC has dual DDR4 RAM slots, one M.2 NVME 2280 slot, and one M.2 NGFF slot.

The reading speed of NVME SSD can be up to 4 -5 times faster than mSATA SSD.

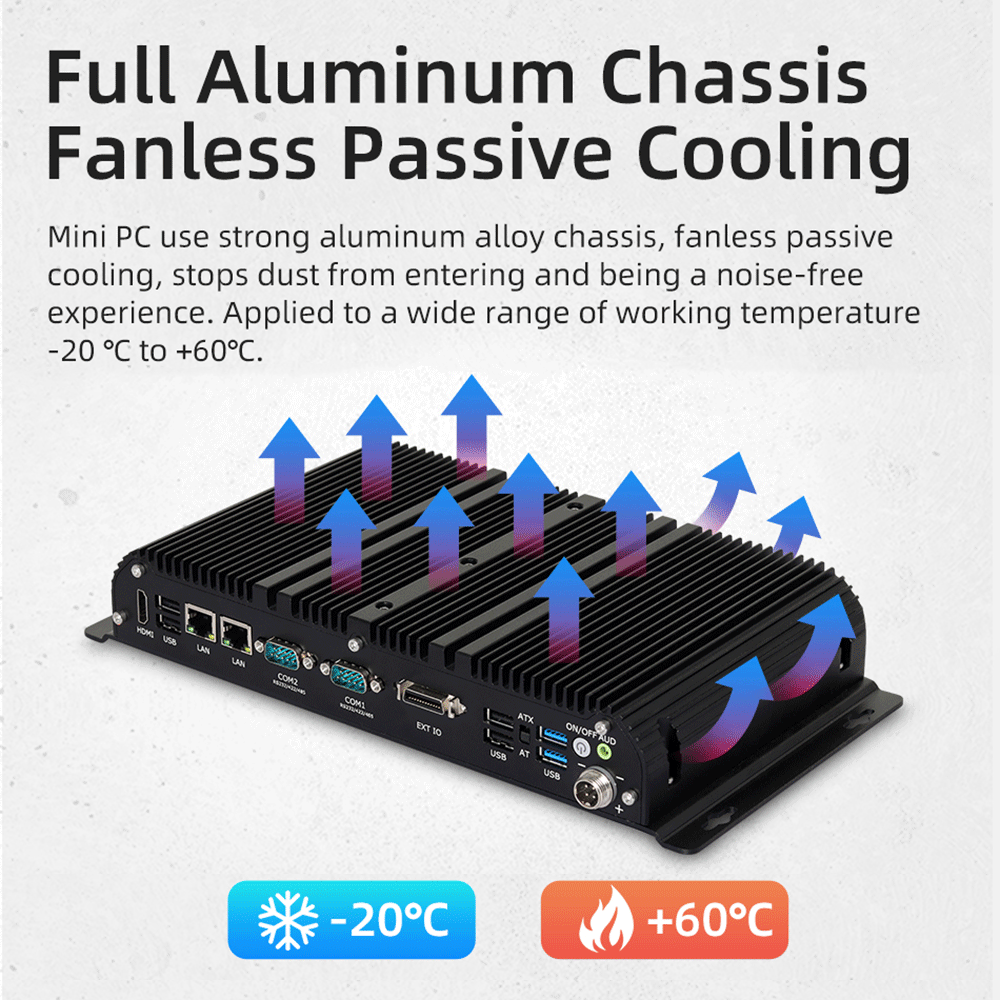

The rugged aluminum alloy shell permits heat dissipation to keep the inside components of the computer cool.
The fanless design prevents the accumulation of dust inside and makes a noise-free experience.
And it allows a wide range of working temperatures from -20℃ to +60℃.

To apply it in a variety of demanding environments, this mini industrial computer features
dust-proof, anti-corrosion,anti-vibration shock, and anti-interference ability.
