Máy tính không quạt Intel Core I7 1195G7

Introducing our high-performance and reliable Fanless Industrial PC, an ideal solution for various industrial applications. This exceptional device features the Intel Core i7-1195G7 processor, providing reliable performance with 4 cores and 8 threads.

It also includes dual-channel DDR4 SODIMM with a maximum Memory Capacity of 32G, ensuring seamless multitasking. With 1*MSATA SSD and 1*SATA SSD/HDD, you have the flexibility to choose the storage option that best suits your data storage needs.

The Mini Desktop Computer also includes 1*MINI PCIE slot that supports WiFi/Bluetooth and another 1*MINI PCIE slot that can support 3G/4G/WIFI modules, ensuring seamless connectivity options.

Additionally, it offers 8*GPIO with 4*input and 4*output (customizable expansion through motherboard pins), providing great flexibility for integrating with other devices. Equipped with 2*INTEI-I225V 2.5G LAN, it supports wake-up on LAN and PXE boot, making it ideal for networked industrial environments.

Whether it’s for factory automation, intelligent transportation, or any other industrial setting, our Fanless Mini PC is designed to meet your specific requirements. With its robust features and reliable performance, it’s the perfect choice for your industrial computing needs.

Fanless Industrial PC Details:

CPU: Intel Core I7-1195G7 4 Cores 8 Threads Processor, Max Turbo Frequency 5.00 GHz, Cache 12 MB

GPU: Intel® Iris® Xe Graphics Eligible

Memory: Dual Channel DDR4 SODIMM, Up To 32G

Hard Disk: 1*MSATA SSD, 1*SATA  SSD/HDD

Expansion Slot: 1*MINI PCIE Slot, Support WiFi/Bluetooth; 1*MINI PCIE Slot, Support 3G/4G/WIFI Module; 8*GPIO, 4*Input 4*Output (Note: motherboard pins, can be customized expansion)

Ethernet: 2*INTEI-I225V 2.5G LAN, Support wake-up on LAN, PXE boot

COM Ports: 6*DB9 COM RS232, COM1-COM2 can be set in BIOS for RS232/422/485

Display Ports: 1*VGA, 1*HDMI 1.4, Supports Dual-screen Display

I/O Interface: 4*USB3.0, 4*USB2.0, 1*VGA, 1*HDMI1.4, 6*DB9 COM RS232 (COM1-COM2 in BIOS can support RS232/422/485), 2*LAN, 1*Power Button, 1*SPK, 1*MIC, 1*DC

Operating System: Windows 10, Windows 11, Linux, etc.

Power: 1*DC 12V-6A

Material: Aluminum Alloy

Installation: Support desktop and wall-mounted

Size/Weight: 240*150*69mm/About 2.0KG

Suitable Temperature: Operating Temperature: -20℃ to +65℃; Storage Temperature: -30℃ to +70℃; Storage Humidity: 5% – 95% @ 30℃ (Relative humidity, Non-condesing)

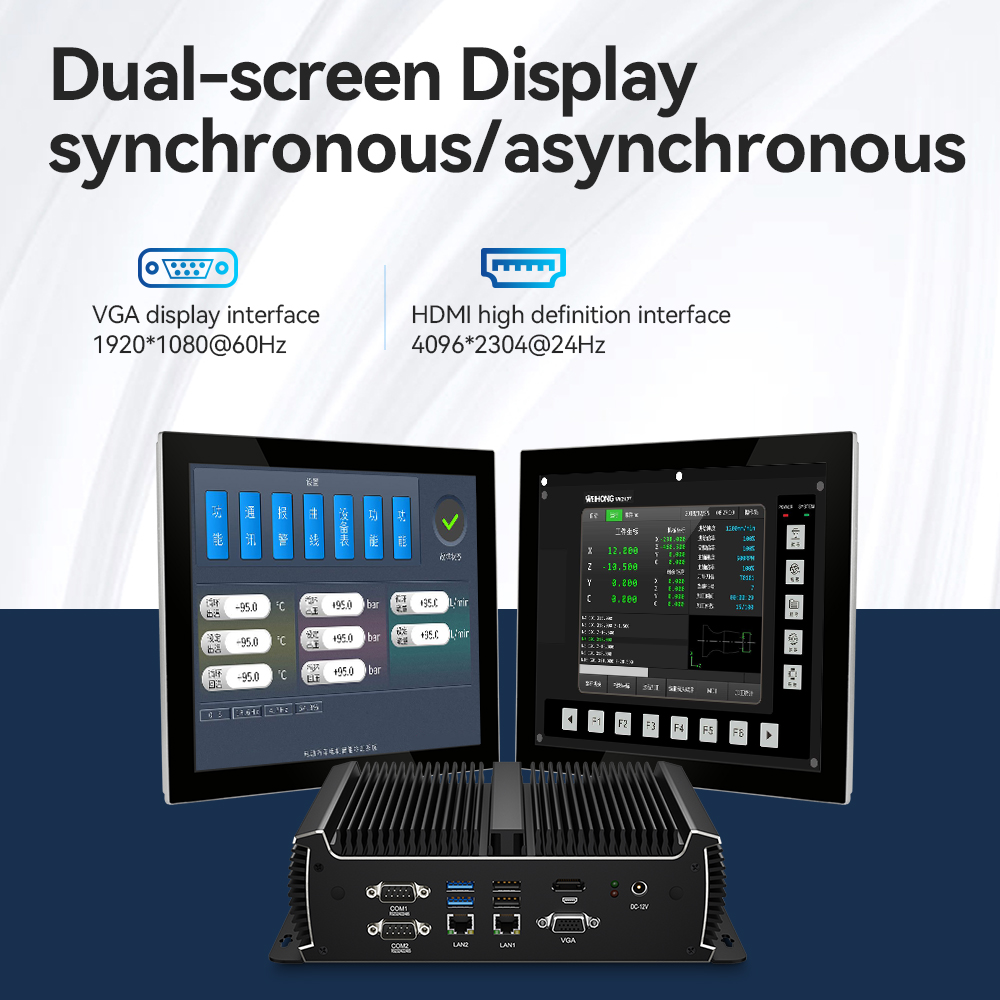

This remarkable device is equipped with a VGA display interface and an HDMI high definition interface. This combination allows for flexible display options and can support dual-screen synchronous or asynchronous display.

The finned structure design, which conducts heat through the all-aluminum alloy body, can better reduce the noise and the influence of environmental dust accumulation and make the machine run more stably.

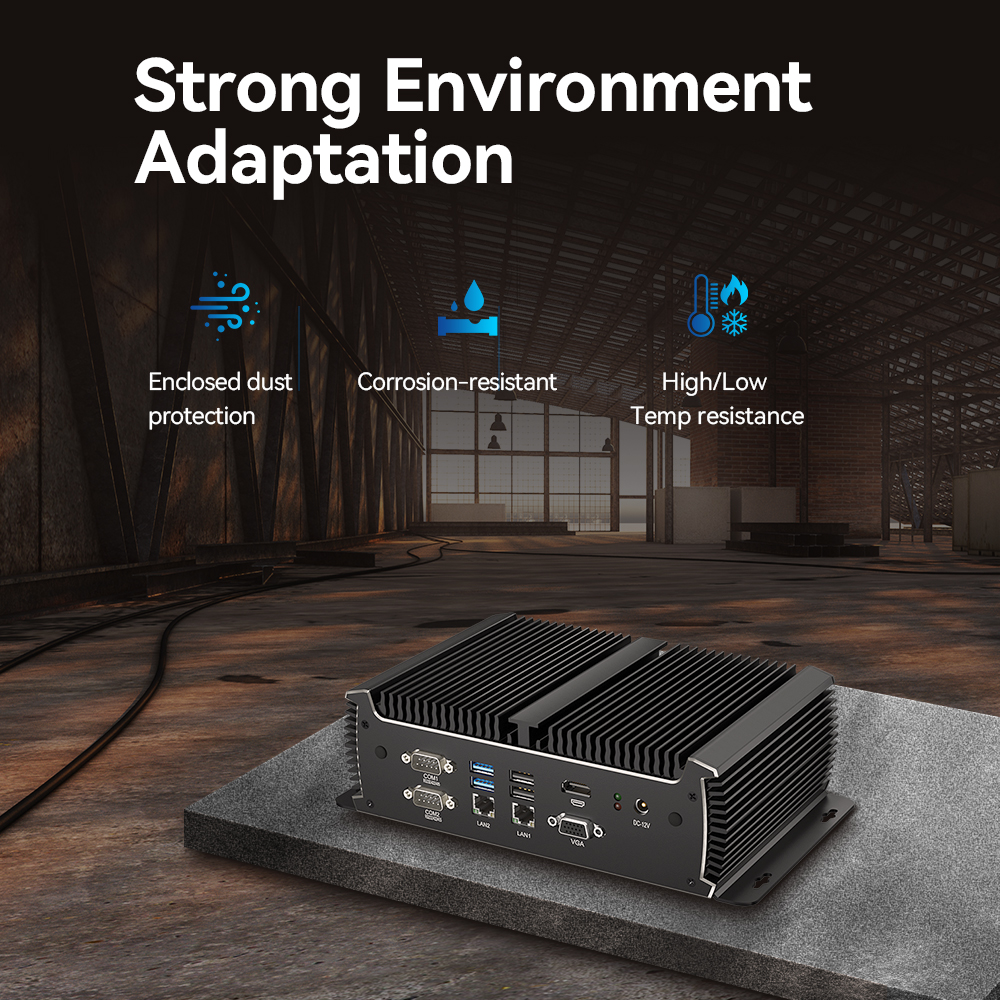

Due to the harsh industrial environment site, so the dual-network 6 serial port industrial control host has a stronger adaptability to cope with high temperature and humidity and other environmental changes, with dust-proof, corrosion-resistant, high and low temperature resistance (-20°C to +65°C) and other capabilities.

Whether you need to monitor multiple processes simultaneously in a factory setting, display detailed data in an intelligent transportation control room, or present information in any other industrial scenario, our Industrial PC has you covered.
