Máy tính công nghiệp không quạt J4125 RS485 Linux Mini PC

This is an X86 fanless Mini Industrial Pc, integrated with Intel Celeron J4125 or N4000 on the motherboard. The mini Industrial Computer comes with dual LAN(2* RJ45) and four com(1* RS232/RS485+3*RS232), widely used in buisiness, banking, securities, telecommunications, industrial automation, and other fields. This Mini PC supports to be installed with Windows 10, Linux, Ubuntu or Centos, etc., so it also can be used as an ordinary Mini Desktop Computer or Personal computer for home, office, business, students, etc.  In addition, with the rich interfaces of 2* HDMI, 2*RJ45, 4*COM, 5*USB 3.0, and 3*USB 2.0,  there is an easy interconnection between devices.

Product Details

CPU: Intel Celeron J4125, N4000

BIOS: American
Memory(RAM): 1* Single Channel SODIMM, DDR4 1*260-pin SO-DIMM,  Max Up to 8GB DDR4

Hard Disk: Support 1* M2 NGFF 2280 SSD + 1* 2.5 inch SATA SSD / HDD

Triple Display: Support 4K @60Hz , 2* HDMI on external interface + 1 * LVDS on internal connectors

Ethernet port: 2 x Realtek Gigabit Ethernet（RTL8111H/8111G）

External Interface: 1 x DC-IN, 2 x HDMI, 5 x USB3.2 GEN1(5Gbps) + 3 x USB2.0, 2 x LAN,1 x MIC-IN+1 x HP-OUT,1 x REC (Ghost button (one-key system restore), 1 x RST (Reset button & CLR_CMOS button),2 x LED,1 x HDD LED(Red), 1 x WIFI & 4G module states(Green), 1 x PWR_BT

Internal Connectors: 1 x Debug,1 x LVDS,1 x SATA_PWR + 1 x SATA,1 x COM_CONN(4*COM232, support RS232 / RS485 set on COM1), 1 x JFP (auto power on set up jumper),1 x GPIO, 1 x AUDIO + 1 x Speaker,1 x F_USB2.0
WIFI: Module with dual antenna
Power: Input: AC 100-240V 50-60Hz, Output: DC 12V 3A
OS Supported: Win 10/8 / Linux, Ubuntu,Centos, etc.

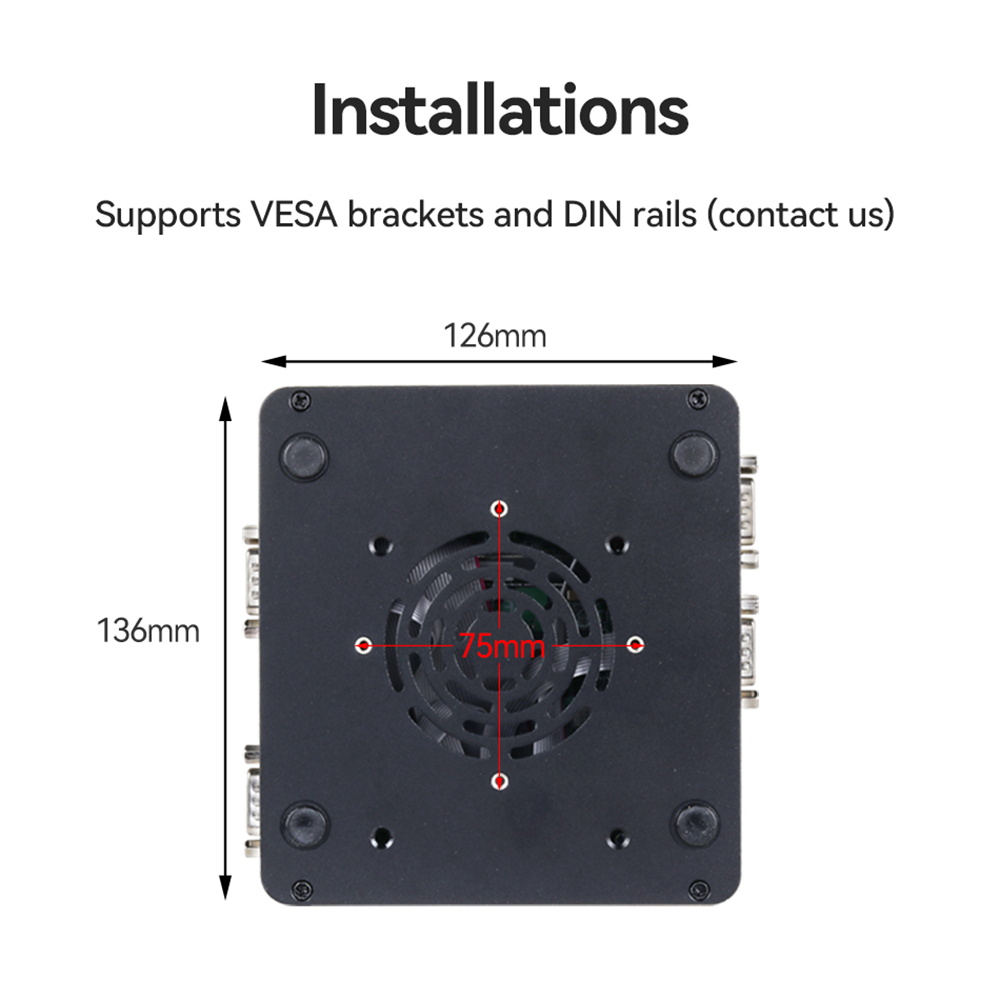

Custom Supported: 24V, Din Rail, 4* RS485, GPIO, etc.
Features: 1.Support WiFi, 3G/4G Lte.
2.Support Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC powe loss(Auto Power on).
Operating Temperature: -20~60℃
Storage Temperature: -30~70℃(15℃-35℃  Recommended)
Relative Humidity:10%~90% ℃ Relative humidity, No condensation

Mini PC, Home & Office PC, Gaming PC, Industrial PC with RS232/ RS485, Linux Ubuntu PC, 4 LAN / 6LAN Firewall PC are all available in our store, Bookmark our store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.

This is a Fanless mini Industrial computer which comes with Intel Celeron J4125 or N4000.

It carries on with high data processing performance but with low power draw.

This J4125 Mini Industrial PC comes with 4 COM(1* RS232/RS485+3* RS232) ports.

Please kindly set RS845 by jumper setting on the motherboard.
