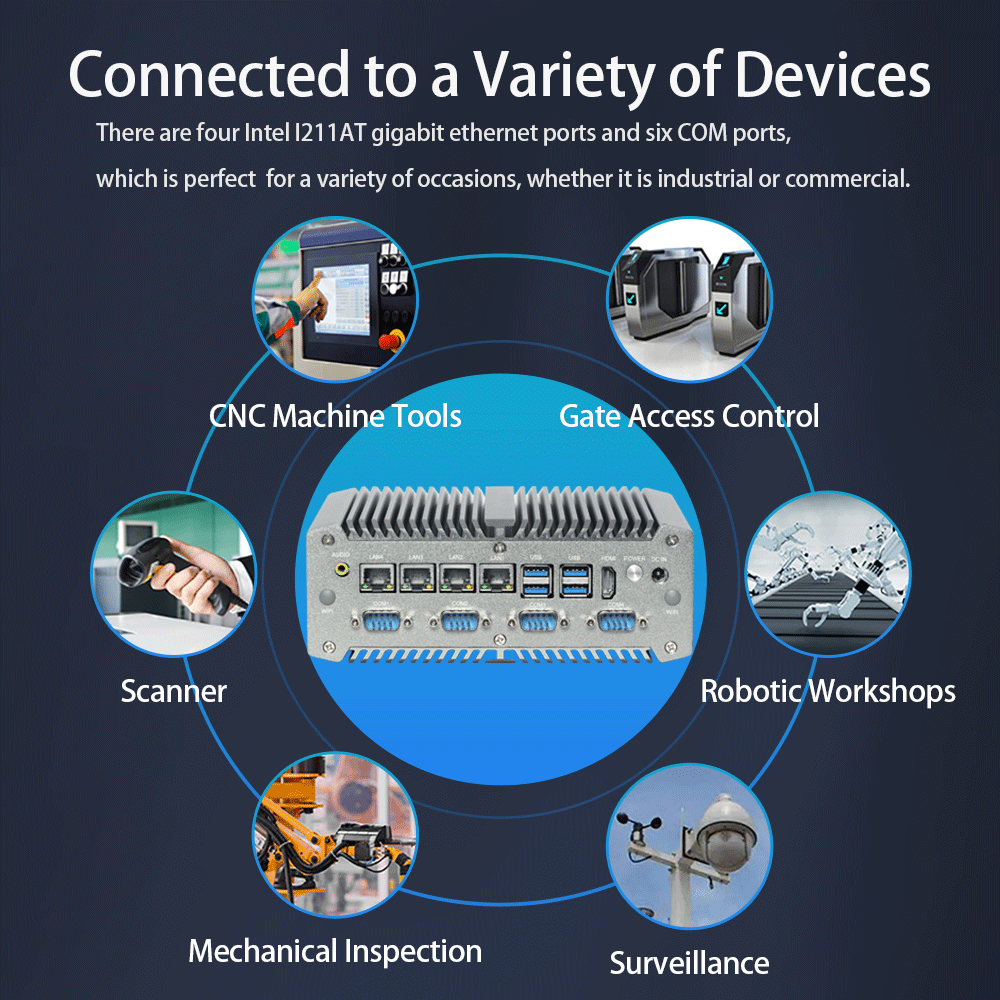

This is a rugged Fanless Industrial PC, which is integrated with intel pentium 5405U, intel core i5 8250U/8260U, i5 10210U, i7 8565U, or i7 10510U on the motheboard, designed to meet the high-performance computing needs of modern industries, such as machine vision,face recognition, intelligent robots, and so on. Fins on top and the full metal body of the indutrial PC permit fast heat dissipation to keep the inside components cool. The fanless design effectively prevents the accumulation of dust and moisture inside. This fanless Industrial Computer comes with four Intel i211AT gigabit ethernet ports and six COM ports, which is perfect for a variety of occasions, whether it is industrial or commercial; the four ethernet ports supports POE capability, which makes transmitting signal and powering devices being completed on single one network cable; and there are 16-bit programmable GPIO ports on the Mini Industrial Pc, which can flexibly connect and control more external devicesor circuits, allowing for a wider range of application scenarios.

Product Details

CPU: Intel Core i5 8250U 8260U 10210U, i7 8565U, i7 10510U Pentium 5405U

Memory(RAM): 1* Single Channel SODIMM, 260-Pin DDR4, Max Up to 32GB

Storage(SSD): 1* M.2 NVME 2280 SSD + 1* 2.5 inch SATA SSD / HDD

Dual Display: 11* HDMI+1* LVDS(extended on the motherboard), Support Dual-line Synchronous or Independent display

OS Supported: Win 11/10, Linux, Ubuntu, Centos, Openelec, etc.

External I/O ports: 4* LAN(POE), 4*USB 3.0, 4*USB 2.0, 6*COM (4*RS232+ 2*RS232/RS485/RS422),

1*GPIO (8*Inputs+8*Outputs), 1*HDMI, 1*AUDIO, 1*DC,2 x Antenna Interface for WIFI

Ethernet port: 4* RJ45 IRJ45 10/100/1000Mbps Intel i221AT, Support POE

Wireless: 1*Full-Height Mini-PCIE, Support WiFi or 2 in 1 WIFI & BT, 3G/4G LTE (Optional)

Features: POE Capability, Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss(Auto Power On).

Power Consumption: 9-36V (AC TO DC, 100~ 240V)

Operating Temperature: -20-65℃

Storage Temperature: -30℃-70℃(15- 35℃ recommended)

Relative Humidity: 5%- 95% without condensation

Mini PC, Home & Office PC, Gaming PC, Industrial PC with RS232/ RS485, Linux Ubuntu PC, 4 LAN / 6LAN Firewall PC are all available in our store, Bookmark our store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.

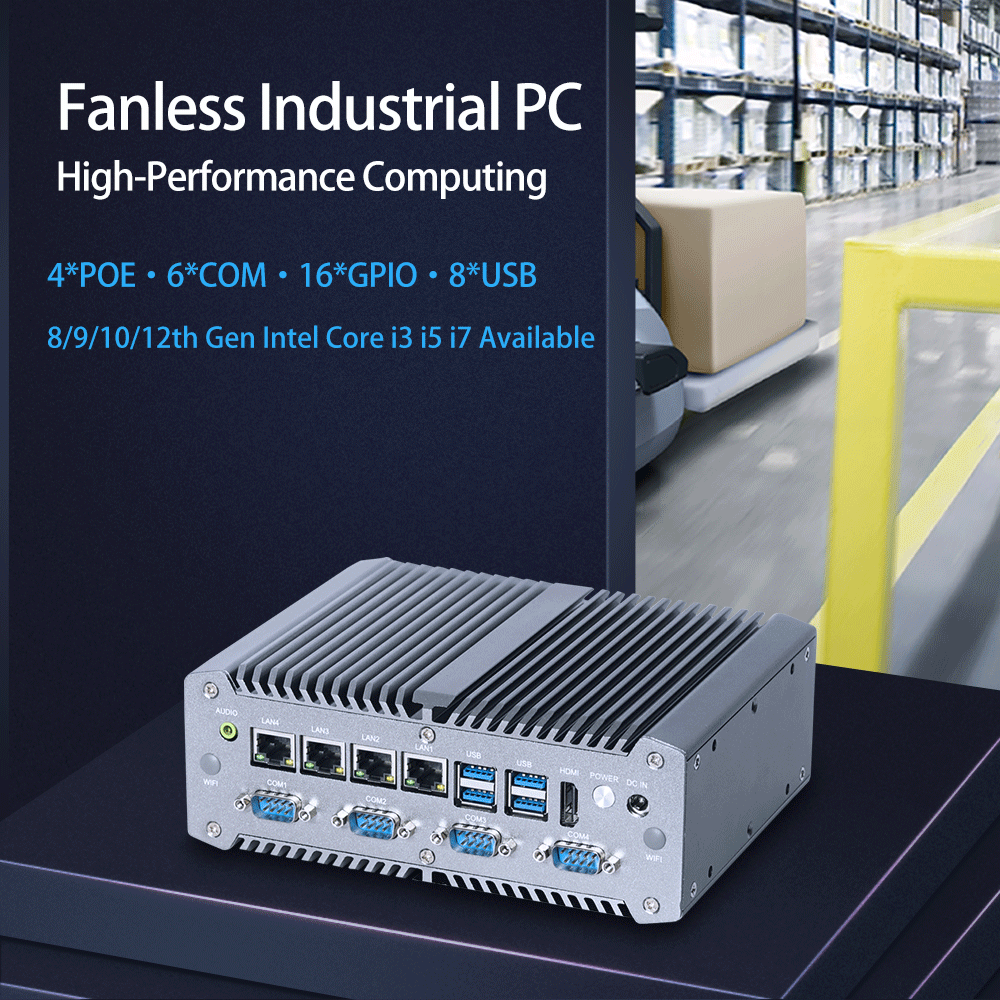

This mini fanless industrial PC comes with 4* POE, 6*COM, 8*USB , 16* GPIO.

The industrial computer is equipped with Intel Core i5-8250U i5 10210U, i7 8565U or i7 10510U with quad-core
and eight-thread processing, which comes with faster speed, but lower power draw.

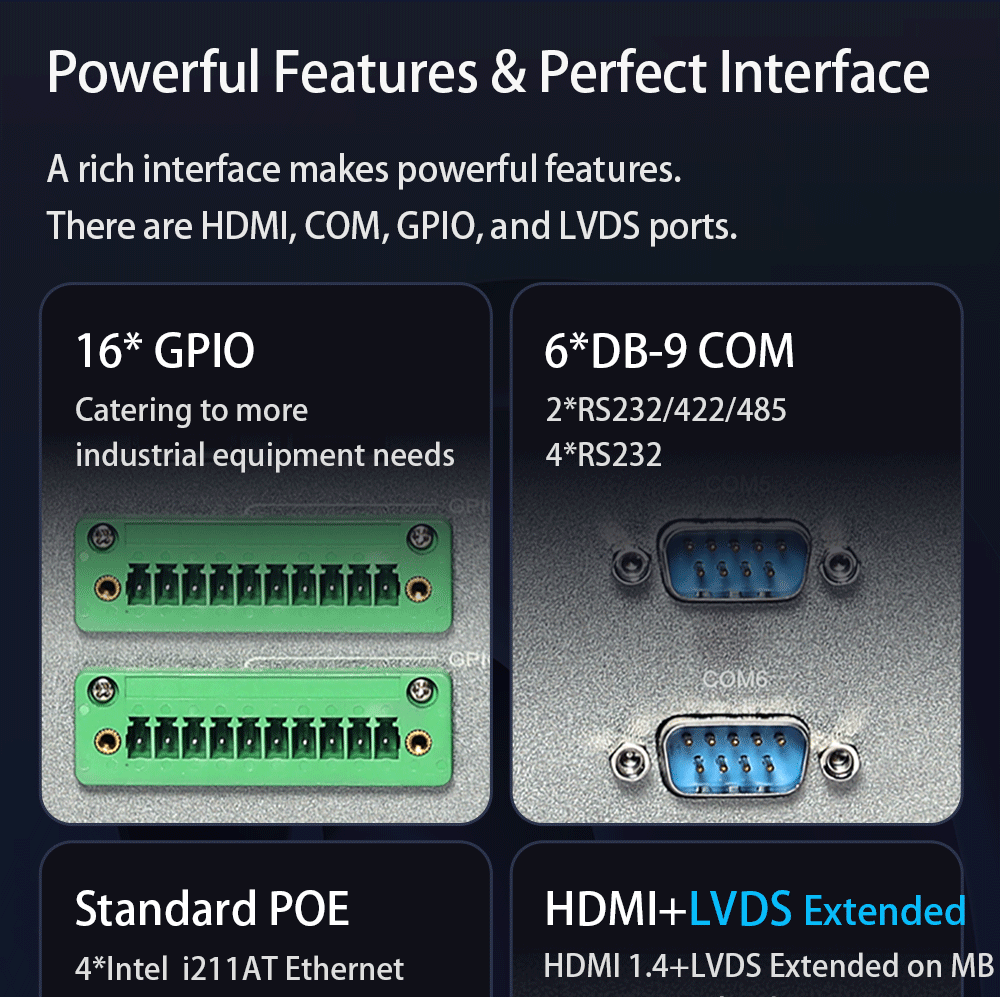

A rich interface makes powerful features. There are HDMl, COM, GPIO,and LVDS ports on the rugged mini PC.

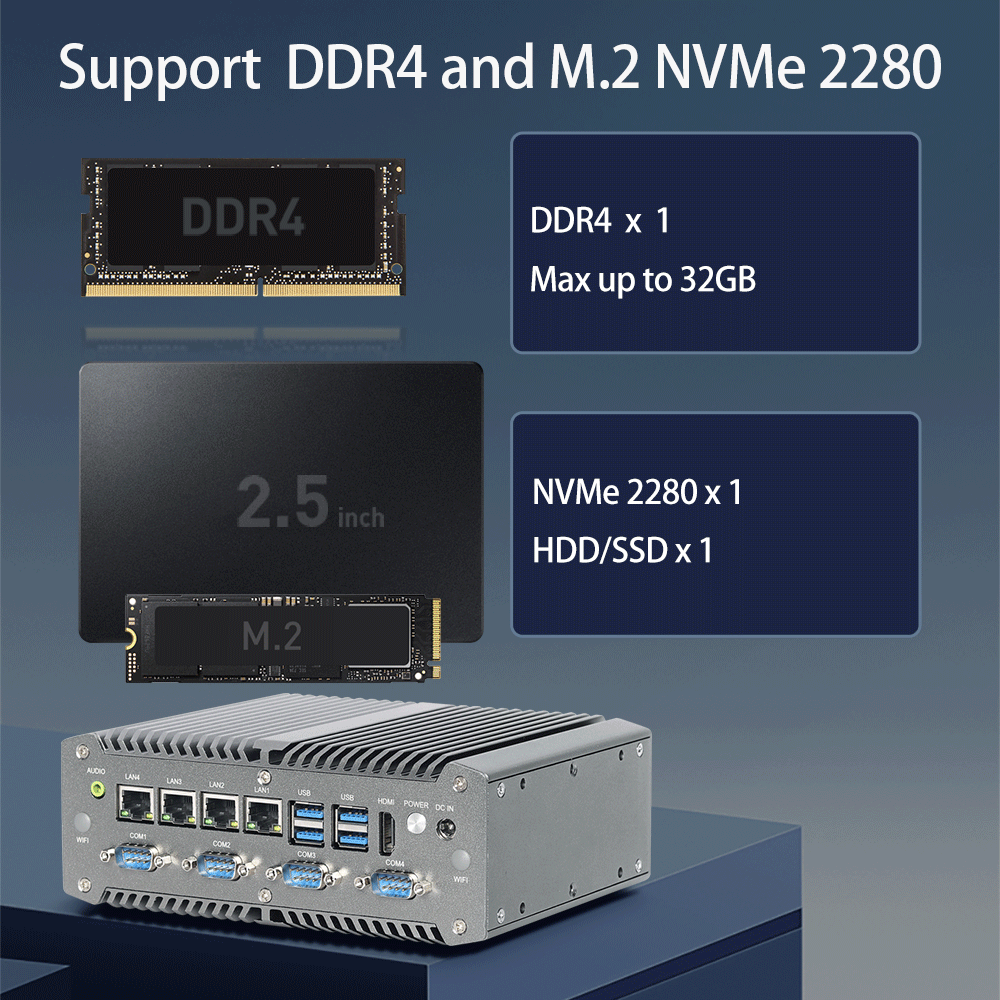

The mini PC supports DDR4 memory and M.2 NVME SSD.
