Máy tính công nghiệp Intel Series Dual LAN Dual COM
Khuyến mãi khi mua ONLINE hoặc gọi Hotline
Máy tính công nghiệp Intel Series Dual LAN Dual COM
Product Attributes
Model No.: X46G
Brand: XCY
Certification: Ce, Rohs, Sgs
Product Status: Stock
Types Of: Embedded Computer, Industrial Computer Accessories, Embedded Industrial Motherboard, Industrial Monitor, Industrial Chassis
Place Of Origin: China
Memory: 1* Single Channel SODIMM, DDR3L 1033/1333/1600MHz
Hard Disk: SSD:1*Full Height mSATA socket, HDD:1*SATA 2.5″HDD
GPU: Intel HD Graphics/4200/4400/5500
VGA: 1*VGA, Max Resolution 1920×1080@60Hz
HDMI: 1*HDMI, Max Resolution 3280×2000@60Hz
Dual Display: VGA + HDMI,Support for Synchronous or Asynchronous Display
Extension: 1× Half Height Size Mini PCIE
Power: 1*DC 12V 5A/60W(AC TO DC,100~240V)
OS: Win 10/8 /7 Linux, Ubuntu, Openelec, etc.
Ethernet: 2 x RJ45 10/100/1000Mbps Realtek 8111F Gigabits Ethernet
Supply Ability & Additional Information
Packaging: Carton Box
Productivity: 15000/M
Transportation: Ocean,Land,Air,Express
Place of Origin: Shen Zhen, Guang Dong, China
Supply Ability: 15000/M
Certificate: CCC, CE, ROHS, SGS
HS Code: 8471504090
Port: Shen Zhen Port,Yan Tian Port
Payment Type: T/T,Paypal,Credit Card
Incoterm: FOB,CFR,Express Delivery,CIF,EXW,CIP

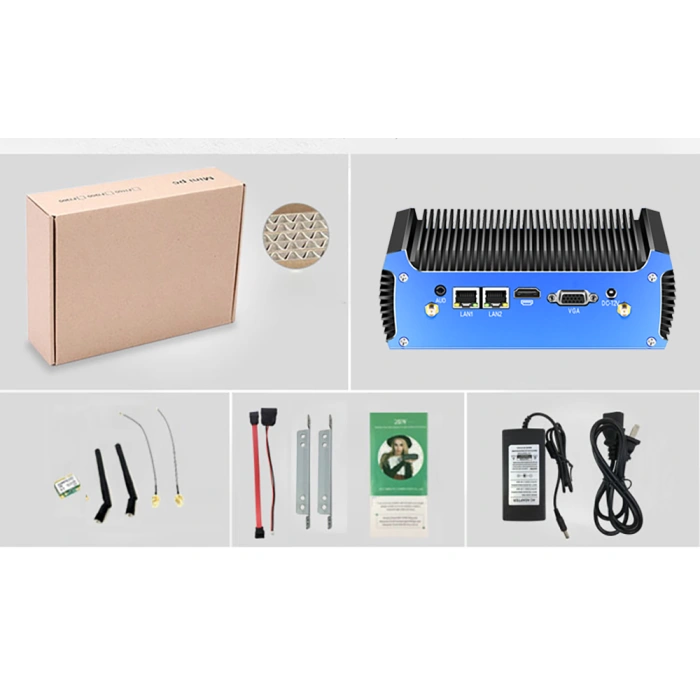

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Carton Box
Picture Example:

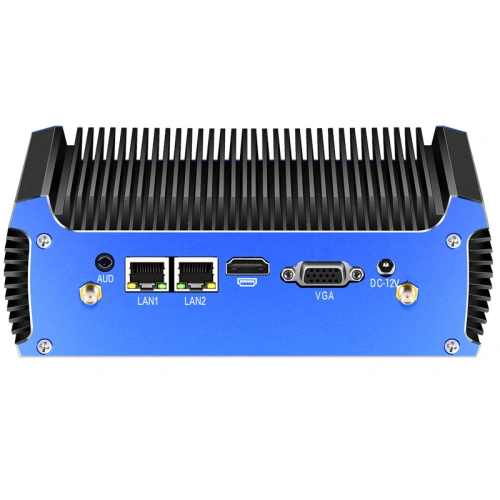

X46G Dual Lan Dual COM Industrial PC
Our Fanless Industrial PC is ideal for tough industrial settings. It has 2 x RJ45 10/100/1000Mbps Realtek 8111F Ethernet ports for fast data transfer. The 1×Half Height Mini PCIE slot allows for expansion. Features like Wake UP on LAN and S5 RTC Wake Settings enable remote and scheduled power-on, while PXE Boot simplifies OS deployment. It supports Win 10/8/7, Linux, Ubuntu, Openelec, etc., and runs fanlessly.
Industrial Mini Computer Details:
CPU: Intel Celeron Processor 2955U, 2M Cache, 1.40 GHz, 2 Core 2 threads, TDP: 15W;
Intel Celeron Processor 3205U, 2M Cache, 1.50 GHz, 2 Core 2 threads, TDP: 15W;
Intel Pentium Processor 3805U, 2M Cache, 1.90 GHz, 2 Core 2 threads, TDP: 15W;
Intel Core i3-4010Y Processor, 3M Cache, 1.30 GHz, 2 Core 4 Threads, TDP: 11.5 W;
Intel Core i3-4010U Processor, 3M Cache, 1.70 GHz, 2 Core 4 threads, TDP: 15W;
Intel Core i5-4200U Processor, 3M Cache, up to 2.60 GHz, 2 Core 4 threads, TDP: 15W;;
Intel Core i7-4500U Processor, 4M Cache, up to 3.00 GHz, 2 Core 4 Threads, TDP: 15 W;
Intel Core i5-5200U Processor, 3M Cache, up to 2.70 GHz, 2 Core 4 threads, TDP: 15 W;
Intel Core i7-5500U Processor, 4M Cache, up to 3.00 GHz, 2 Cores 4 Threads, TDP: 15 W
GPU: Intel HD Graphics/4200/4400/5500
Dual display: VGA (Max Resolution 1920×1080@60Hz)+ HDMI (Max Resolution 3280×2000@60Hz),Support for Synchronous or Asynchronous Display
Ethernet port: 2 x RJ45 10/100/1000Mbps Realtek 8111F Gigabits Ethernet
Memory: DDR3L 1333/1600MHz 1.35V 2GB/4GB/8GB16GB (I5 5200U/I7 5500U support max 16GB)
Hard Disk: 1* mSATA SSD+1*2.5″ SSD/HDD
32GB/64GB/128GB/512GB/1TB SSD optional, 160GB/500GB/1TB HDD optional

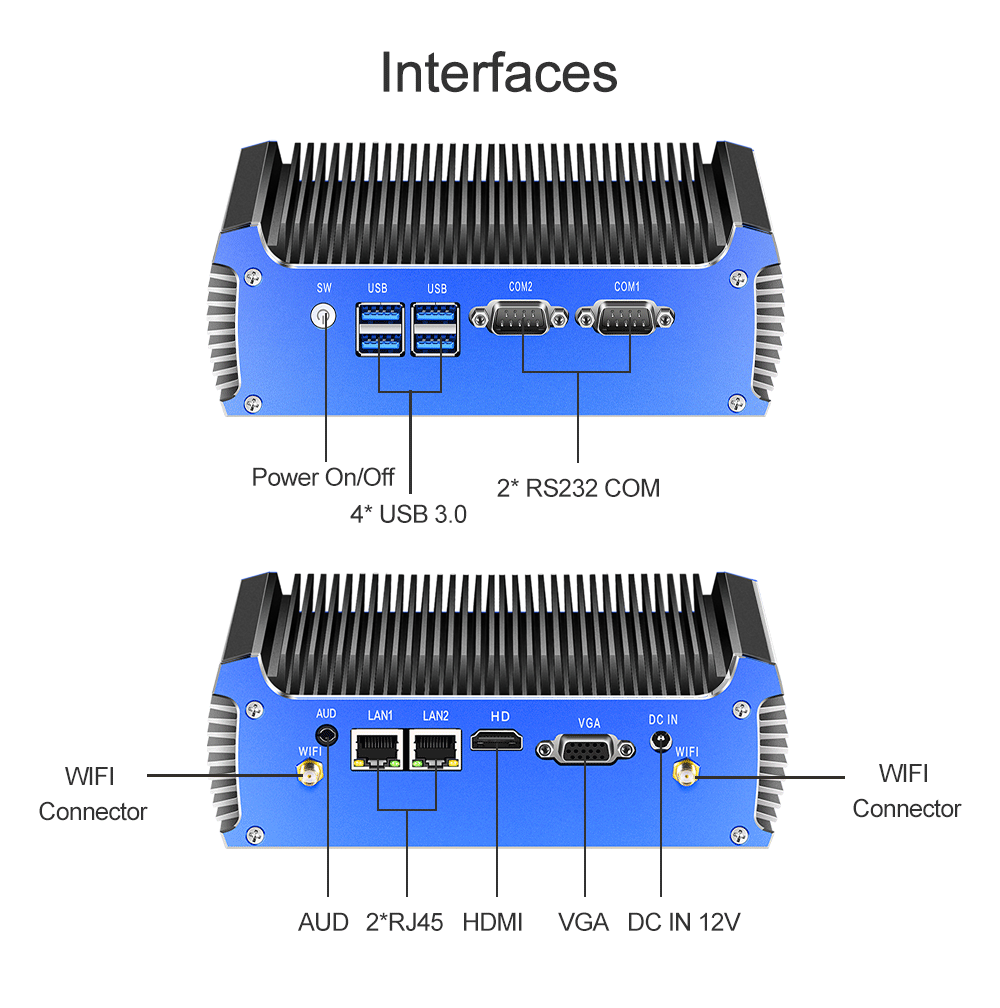

I/O Port: 4xUSB3.0, 2xRS232 COM, 2xLAN, 1xVGA 1xHDMI, 1xAUDIO, 1xPower Switch, 1xDC-IN
Audio: Main system: Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out
Extension: 1×Half Height Size Mini PCIE
WIFI: Module with dual antenna
Power: Input: AC 100-240V 50-60Hz, Output: DC 12V-3A 36W/5A 60W
OS Supported: Win 10/8 /7 Linux, Ubuntu, Openelec, etc.
Features: Support Wake UP on LAN, S5 RTC Wake Settings (Power on at a set time), PXE Boot, Restore on AC powe loss (Auto Power on).
Cooling System: Fanless passive cooling with heat sink
Chassis Material: Aluminum Alloy
Working Environment: Operating Temperature -20-65℃, Storage Temperature 15℃-35℃, Relative Humidity 5%~95% (non-condensing)
This Mini PC provide a wide variety of CPU options to match different performance requirements. There’s an array of processors to pick from, such as Intel Celeron processors for basic daily computing, the Pentium for better multitasking, and Core i3 processors for a balance of power use and performance. For more intensive tasks, high-performance Core i5 and Core i7 processors are also supported.
Crafted from high-quality aluminum alloy, this casing isn’t just durable; it’s a key component in optimizing the mini PC’s performance. The aluminum alloy has excellent thermal conductivity properties, acting as a natural heat conductor. Paired with the strategically placed metal fins on the casing, heat dissipation is significantly enhanced. These fins increase the surface area exposed to the surrounding air, allowing heat to escape rapidly, which means your mini PC can keep running smoothly even during extended, resource-intensive tasks without the risk of overheating.
Industrial environments are often noisy, filled with the hum of machinery, but our mini PC’s casing dampens internal component vibrations, effectively reducing the noise output.
Our mini computer are engineered to support Auto Power-On functionality, a crucial feature that streamlines operations in factory floors, data centers, or automated kiosks. With this ability, the system boots up independently, eliminating the need for manual intervention.
What truly sets our industrial mini PCs apart is their 24/7 stable operation. In industrial environments, downtime can translate to significant losses, whether it’s in manufacturing, monitoring systems, or continuous data processing. Our devices are built with robust components and cutting-edge thermal management systems. These ensure that they can withstand the rigors of round-the-clock use, maintaining consistent performance even under extreme temperatures, heavy workloads, and high humidity conditions.
The rugged construction serves as a formidable barrier against two common industrial nuisances: noise and dust. When it comes to dust, which can clog up sensitive parts and lead to malfunctions over time, the solid aluminum alloy enclosure, along with its tight-fitting design, keeps dust particles at bay. This way, your Industrial Mini Pc maintains its integrity, delivering consistent, reliable performance in the harshest of industrial conditions.
