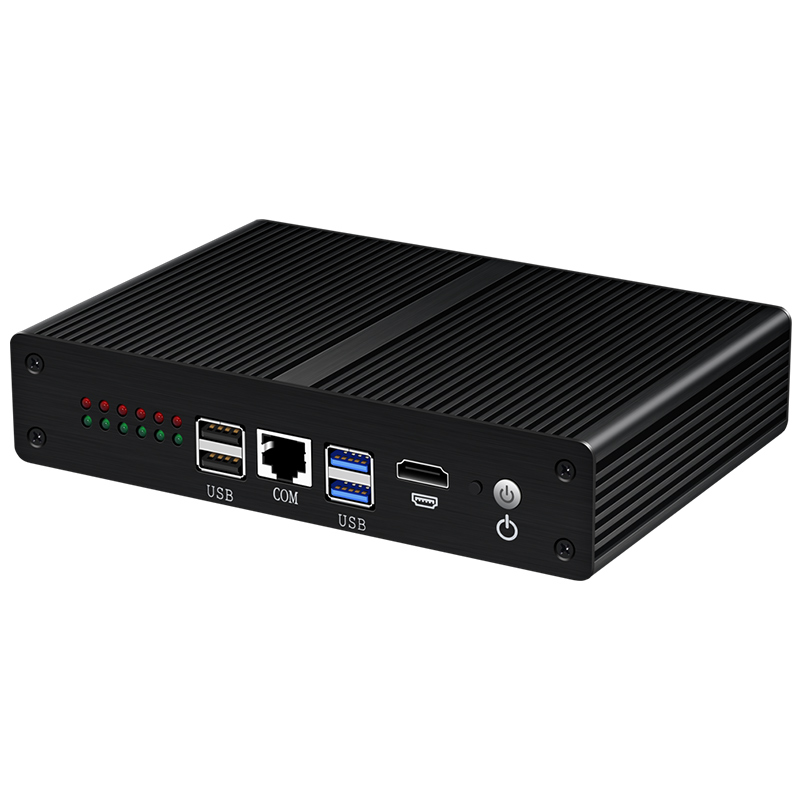

i3 5010U Barebone Firewall Router Mạng Mini PC

The Firewall Appliance itself has very low requirements for storage space, and the space of about 100 megabytes is enough to use. Mini PC computer can generally be connected to either internal MSATA SSDs, or external U disks or mobile hard disks, but it is recommended that you use 32 GB or 64 GB MSATA SSDs: firstly, it can meet the storage requirements of the network server, and secondly, you don’t need to worry about space when installing plug-ins in the future the problem of use. The Hard Disk itself does not need to be of very high quality, it can be used or eliminated by yourself.

Processors Performance:

Intel Core i3-5010U, 3M Cache, 2.10GHz;
Intel Core i3-4200U, 3M Cache, 1.70GHZ;
Intel Core i3-4010U, 3M Cache, 1.70GHZ;
Intel Celeron 2955U, 2M Cahce, 1.60GHz

Main Features:

– Work with 1x DDR3L 1.35V 1066/1333/1600MHz, max to 8GB memory;

– Support 4x hard drives, 1x mSATA SSD, 1x M.2 SSD, 2x 2.5inch SATA;

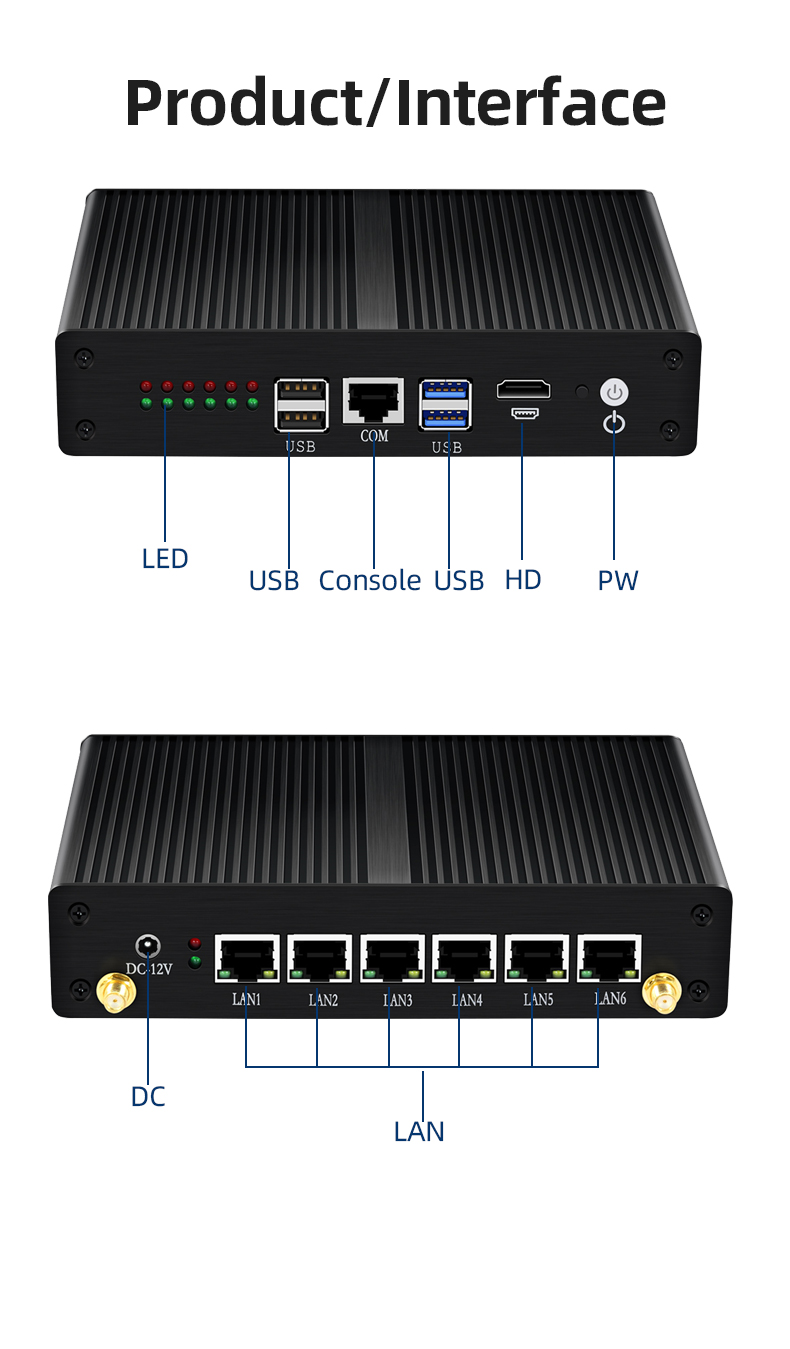

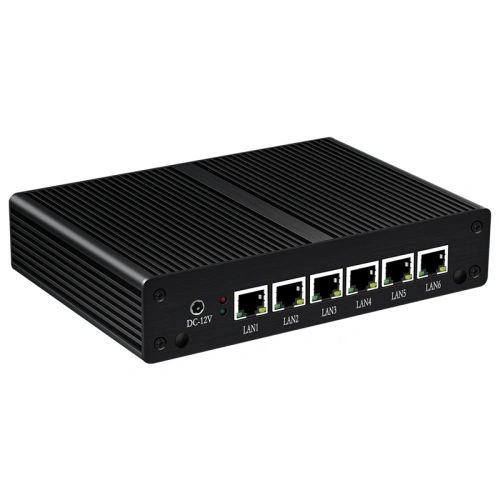

– LAN 1 to LAN 6 In-tel i211AT 10/100/1000Mbps, support wake up on LAN, with LED working states indicators;

– 2x USB 3.0, 2x USB 2.0, 1x H-D-M-I, 1x COM RJ45 console ( RJ45 to RS232 )

– OS support Window, Linux, Ubuntu, LEDE, Pfsense

– CPU i3-4010U, i3-5010U support AES-NI

– Mini PCI-E for WiFi, 3G/4G module, with SIM card slot

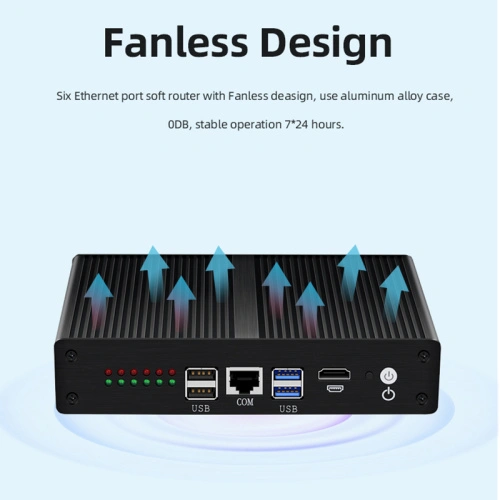

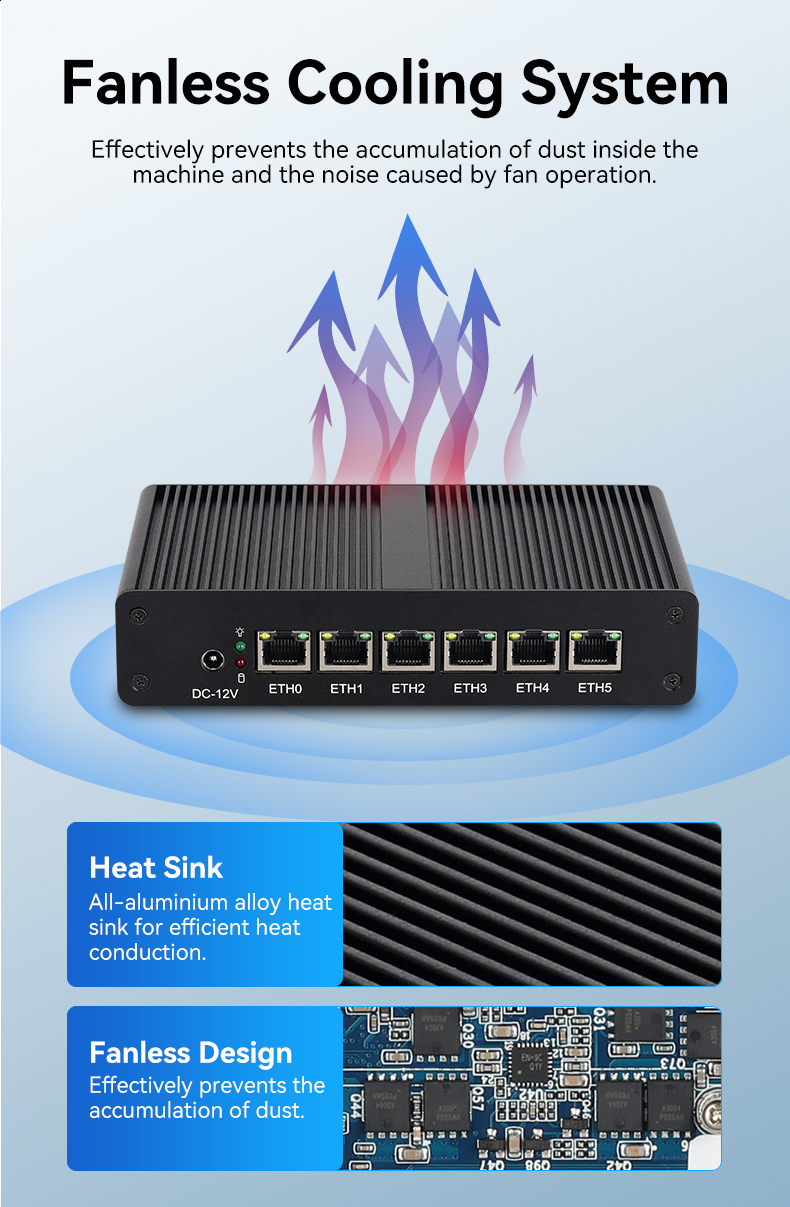

The cooling of the soft Firewall Router is divided into active cooling and passive cooling. Passive cooling is quiet but average, and active cooling is efficient but noisy. If you choose a low-voltage processor like Celeron, passive cooling is enough to hold the heat of the mini pc. If you choose a high-end CPU with high power consumption, in order to ensure the stability of the minipc, it is more appropriate to choose active cooling.
