Bộ định tuyến tường lửa pfSense Gigabit Ethernet 4 LAN 2.5GbE

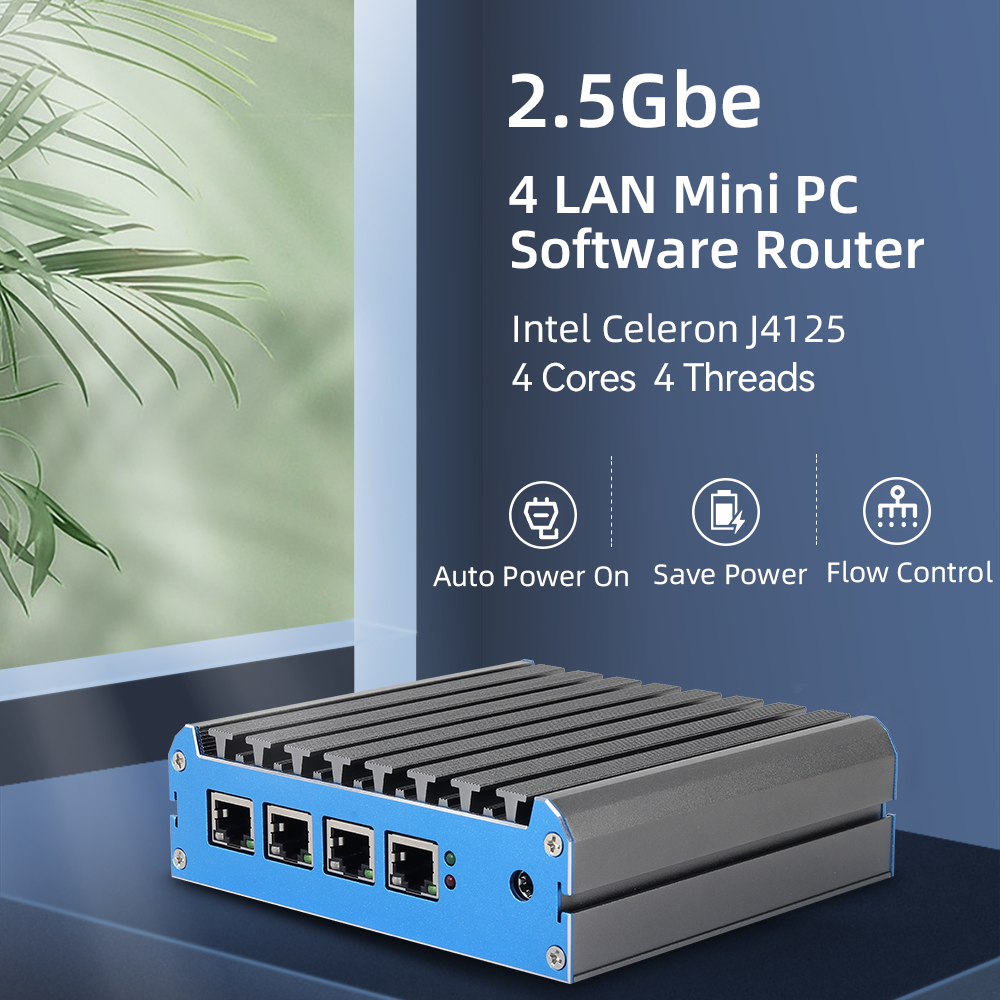

This is a Mini PC with 4 intel i225V 2.5GbE network cards and onboard with Intel Celeron J4125 J1900 N2830 N5010 or E3845. Thus this Mini Computer can be used as not only an ideal Mini Desktop or Portable Mini Pc for home, office, media center, digital signage, digital security and surveillance etc , but as a Firewall Router for home or industry, or a mini network server appliance for other fields. Based on the fanless design, the Firewall Network Server can run more stably and reliably in terminals, multimedia, and other industrial applications to meet a variety of needs in the demanding environment. This firewall mini PC support installation of CentOS, Ubuntu, Sophos, Debian, Windows 10/8/7 , OpenWRT, OPNsense, PFSense, etc.

Product Details

CPU: Intel Celeron J4125 (4 cores 4 threads, 4M Cache, 2.00 GH, up to 2.70 GHz, TDP: 10W)

Intel Celeron N5105 (4 core 4 threads, 4M Cache, 2.00 GHz , up to 2.90 Ghz, TDP: 10W)

Graphics Card: Intel UHD Graphics
Memory: Single Channel DDR4 ,1*260-pin SO-DIMM

2GB/4GB/8GB/ DDR3L 1333/1600 Mhz
Hard Disk (SSD): 32GB/64GB/128GB/256GB/512GB/1TB mSATA SSD

OS Supported: Windows 10/8/7, Linux, Ubuntu, Openelec, OpenWRT, OPNsense, PFSense, etc.
Front-Panel Connectors: Power on/off, 1 x VGA, 1 x HDMI,

2x USB 3.0

Rear-Panel Connectors: 4 x RJ45 LAN, 1 × DC IN 12V/3A

Ethernet port:  4x RJ45 2.5GbE Intel i225-V Gigabits Ethernet
Features:  Support Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC powe loss(Auto Power on).
Power: Input: AC 100-240V /50-60Hz, Output: DC 12V/3A
Cooling System: Fanless passive Cooling & Heat Sink
Chassis Material: Aluminum Alloy
Operating Temperature: -20~65℃
Storage Temperature: -20℃~ 85℃(15- 35℃ Recommended)
Relative Humidity: 5%~95% (without condensation)

This is a firewall mini PC with four 2.5GbE intel i225-V network cards.It is a firewall Software Router.

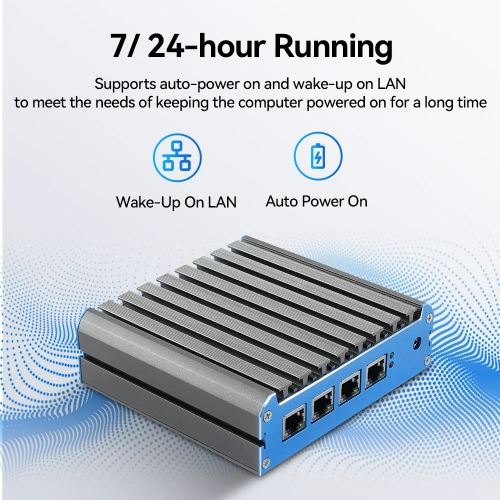

And It supports auto power on, wake-up on LAN, and PXE ,etc.

This mini industrial firewall router is integrated with quad core J4125 or N5105 , which offers a stable performance.

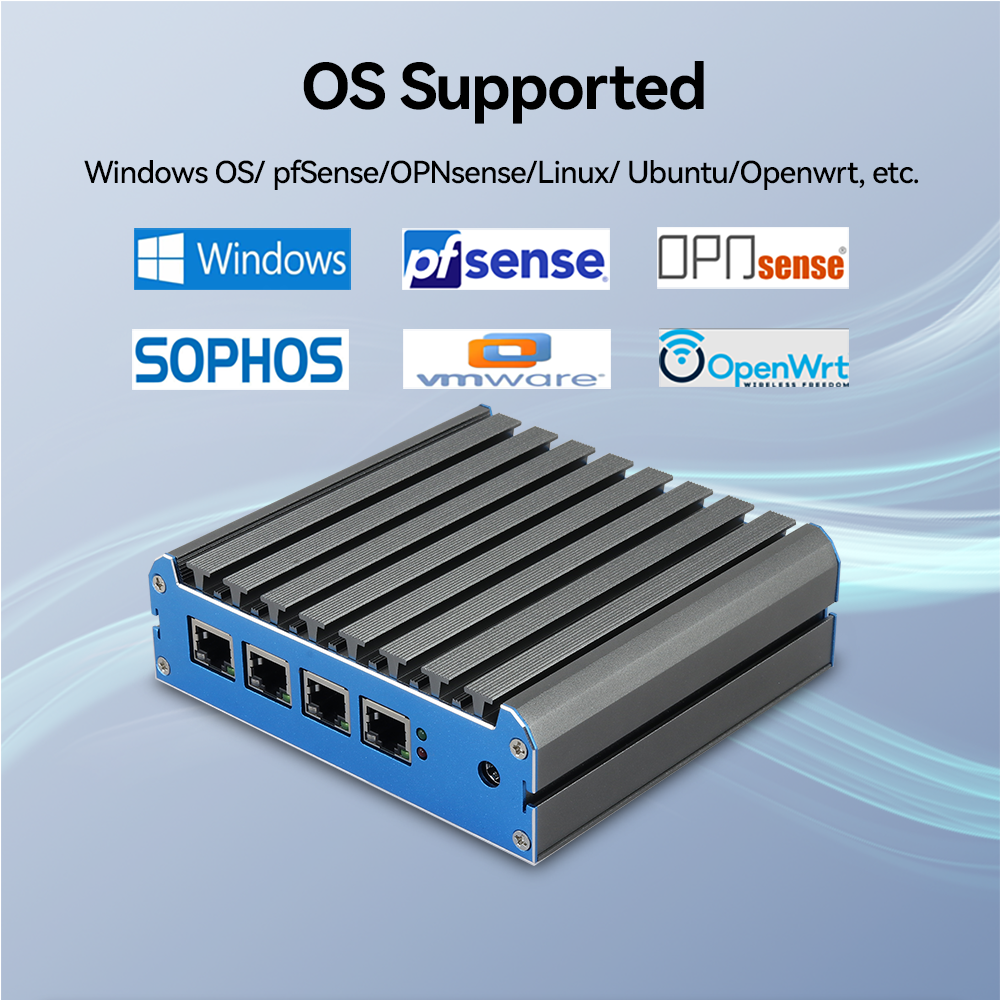

This 4Lan Mini Pc can be installed with Windows OS,  pfSense, OPNsense, Sophos, OpenWRT, Linux, Ubunt, Debian, etc.

With 4 LAN Gigabit Ethernet ports, it provides intelligent flow distribution.

Also it is PPPOE verified , which keeps away from hidden dangerous on the network and ensure the safety of online access.

This 4 LAN industrial Firewall Appliance can be used for office , school, KTV , Cafe,  Bar,  shopping malls, hotel and restraunt, and company, etc.
