Bộ định tuyến tường lửa mini cho tủ máy chủ mạng

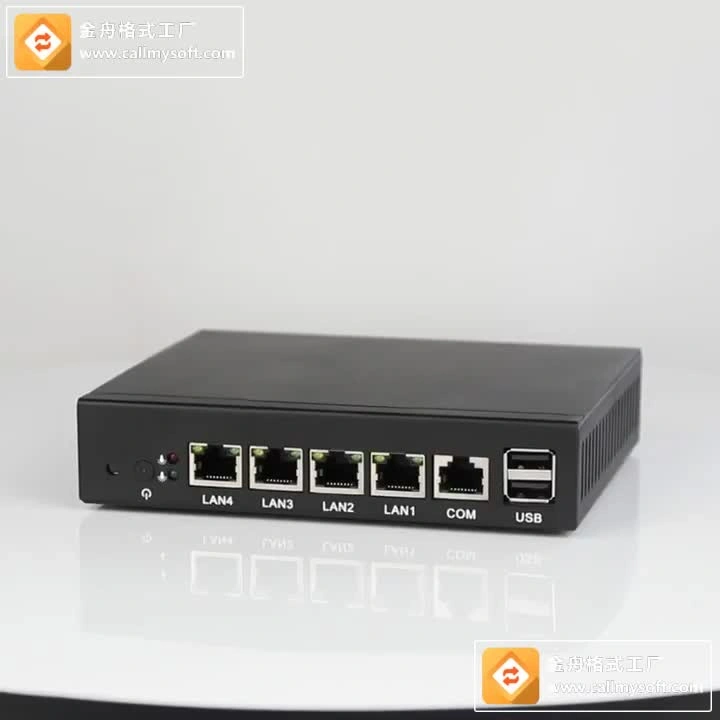

This is a 4 LAN Mini PC with four intel i211 gigabit ethernet ports and integrated with Intel Celeron J1900 J1800 or N2830 on board. Thus this mini PC can be used as not only an ordinary desktop computer, but a mini Software Router for home or industry, and a network Firewall Appliance for other fields. Based on fanless design, the mini firewall can run more stably and reliably in terminals, multimedia and other industrial applications to meet a variety of needs in the demanding environment. This J1900 PFsense mini PC support installation of CentOS, Ubuntu, Sophos, Debian, Windows 10/8/7 , OpenWRT, OPNsense, PFSense, etc.

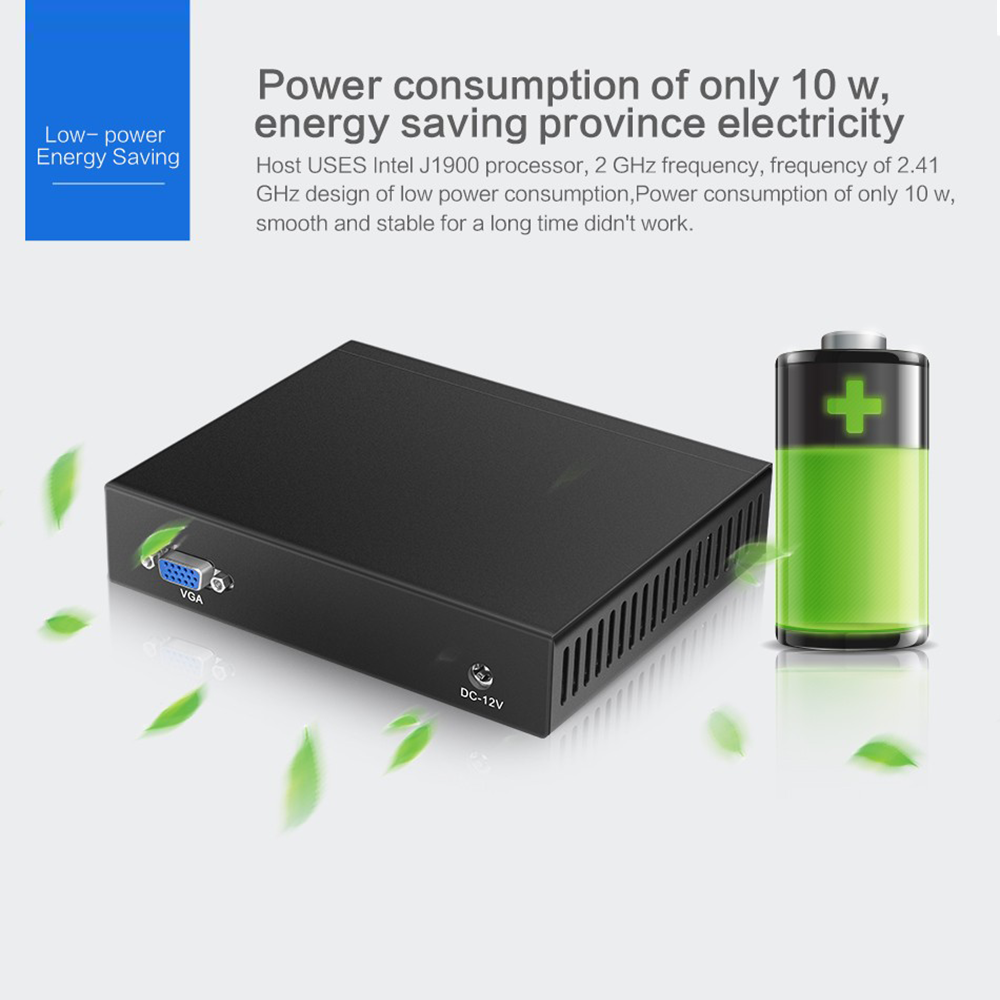

CPU: Intel Celeron J1900 (4 cores 4 threads, 2M Cache, 2.00 GH, up to 2.42 GHz, TDP: 10W)

Intel Celeron J1800 (2 core 2 threads, 1M Cache, 2.41 GHz , up to 2.58 Ghz, TDP: 10W)

Intel Celeron N2830 (2 core 2 threads, 1M Cache, 2.16 GHz, up to 2.41 Ghz, TDP:7.5）

Graphics Card: Intel HD Graphics
Memory: Single Channel DDR3L ,1*204-pin SO-DIMM

2GB/4GB/8GB/ DDR3L 1333/1600 Mhz
Hard Disk(SSD): 32GB/64GB/128GB/256GB/512GB/1TB mSATA SSD

OS Supported: Windows 10/8/7 Linux ubuntu Openelec, etc.

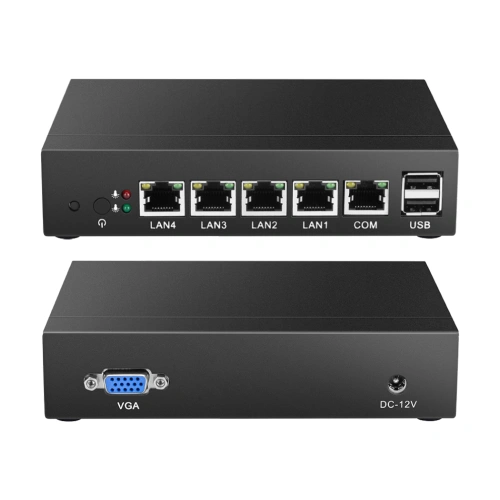

Front-Panel Connectors: Power on/off,

2 x USB 2.0 , 1 × COM,

4 x RJ45 LAN
Rear-Panel Connectors: 1 x VGA, 1 × DC IN 12V/5A

Ethernet port: 4x RJ45 10/100/1000Mbps Inte i211-AT Gigabits Ethernet
Features:  Support Support Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC powe loss(Auto Power on).
Power: Input: AC 100-240V /50-60Hz, Output: DC 12V/3A

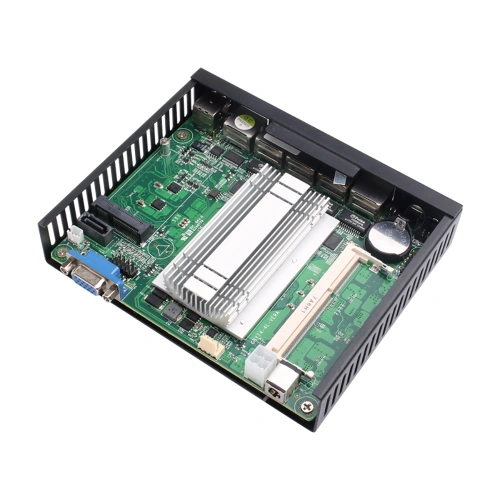

Cooling System: Fanless passive Cooling & Heat Sink
Chassis Material: Aluminum Alloy
Operating Temperature: -20~65℃
Storage Temperature: -20℃~ 85℃(15- 35℃ Recommended)
Relative Humidity: 5%~95% (without condensation)

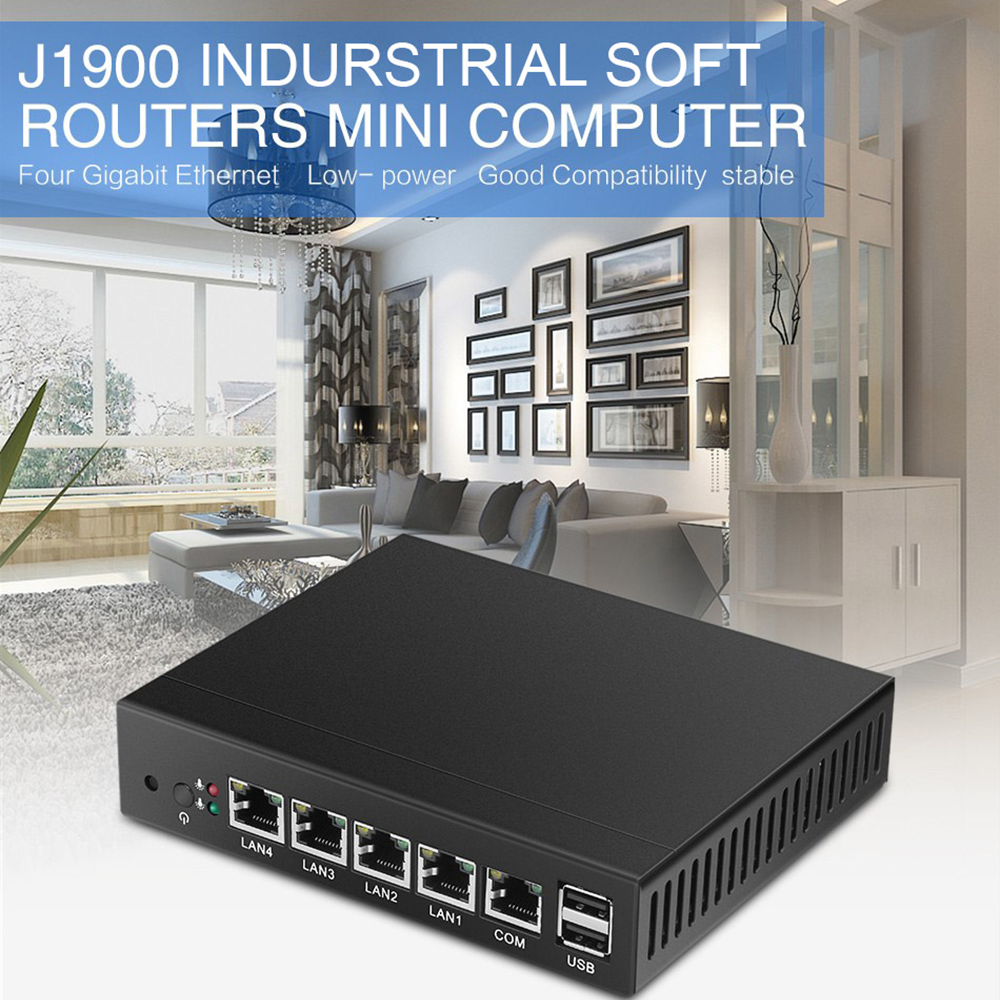

This mini industrial Firewall Router can work 7/24 hours with low power consumption and a good compatibility with other devices.

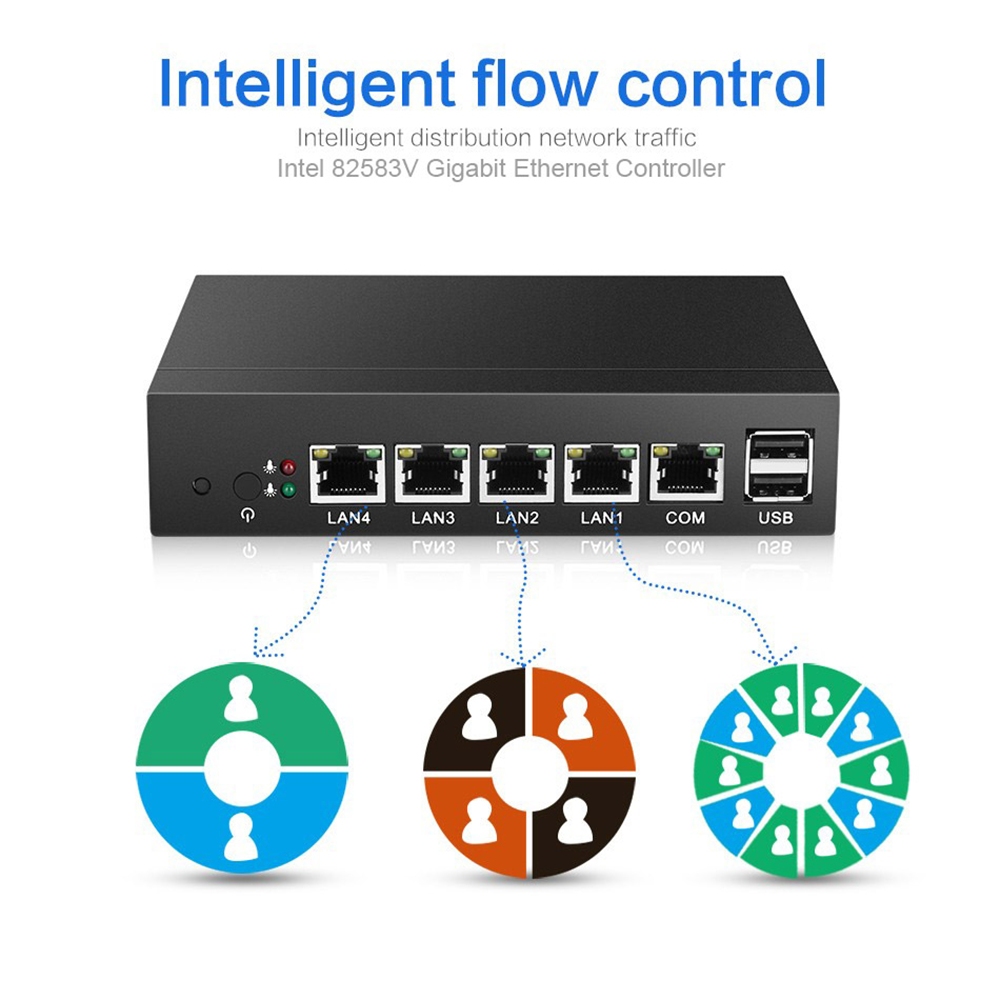

With 4 LAN Gigabit Ethernet ports, it provides intelligent flow distribution.

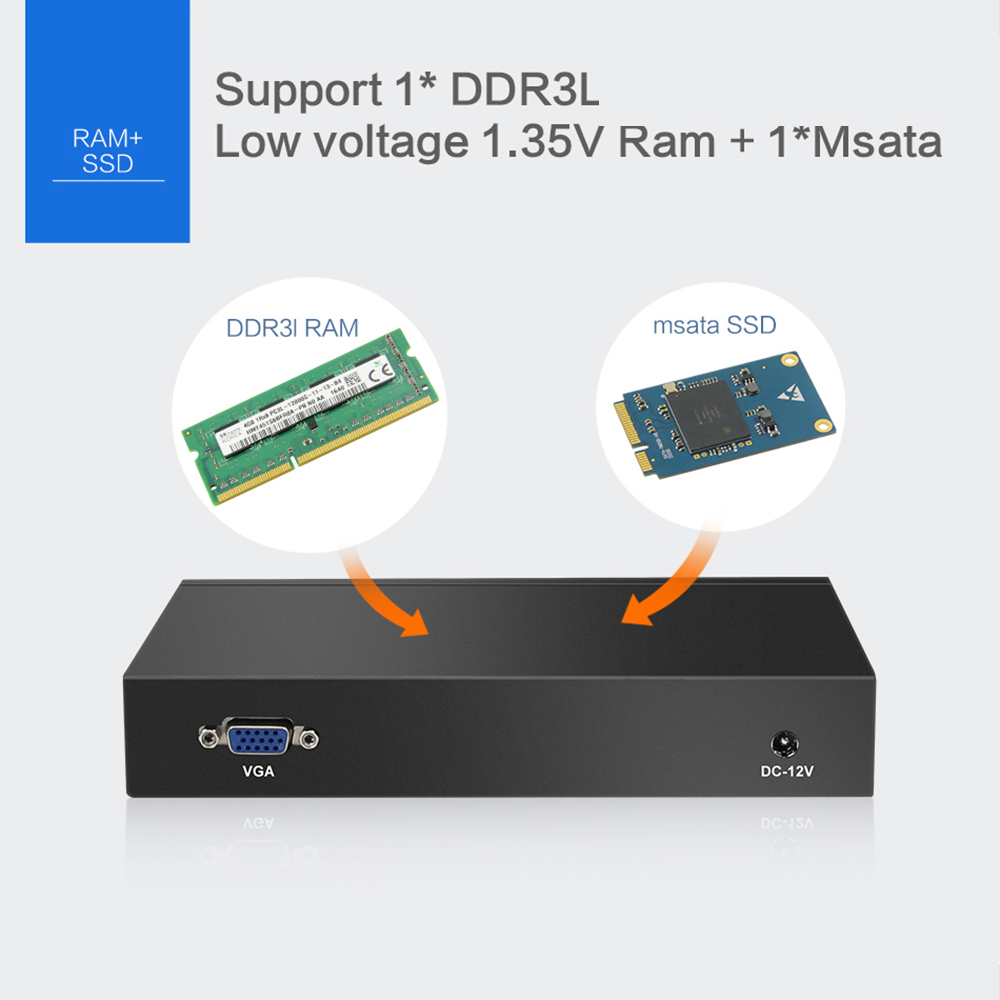

This mini network server supports DDR3L + mSATA SSD.
