Đặc điểm nổi bật:
Payment Type:Paypal,T/T,Credit Card / Bank Transfer
Incoterm:FOB,CIF,EXW,FCA,Express Delivery
Transportation:Ocean,Land,Air,Express
Port:Shenzhen Bay,Yantian
Liên hệ: 0385188958
Bộ định tuyến tường lửa Intel N100 PFsense Mini PC
Khuyến mãi khi mua ONLINE hoặc gọi Hotline
Bộ định tuyến tường lửa Intel N100 PFsense Mini PC
Product Attributes
Model No.: N100 4LAN Network Firewall
Brand: XCY
Product Status: Stock
Types Of: Wired &Amp; Wireless
Certification: Ce, Rohs, Other
Place Of Origin: China
Product Name: 2.5G N100 Firewall Network Server
Throughput: 8GbE~9GbE
Memory / RAM: 4GB/8GB/16GB 1* DDR5 SODIMM
Storage / SSD / Hard Drive / Hard Disk: 128GB/256GB/512GB/1TB M.2 NVME SSD
Ethernet / LAN: 4* 2.5G RJ45, Intel i225V Network Card
Wireless: 1* mini-PCIE, support 3G/4G/WiFi
Simultaneous Sessions: 64
Capability: 3G/4G Lte ,virtualization, wake-on LAN, Auto Power on
Cooling System: Fanless Passive Cooling
Dimension: 136*126*40mm
Supply Ability & Additional Information
Packaging: Carton
Productivity: 12000/M
Transportation: Ocean,Land,Air,Express
Place of Origin: Shenzhen, Guangdong, China
Supply Ability: 12000/M
Certificate: 3C
HS Code: 8471504090
Port: Shenzhen Bay,Yantian
Payment Type: Paypal,T/T,Credit Card / Bank Transfer
Incoterm: FOB,CIF,EXW,FCA,Express Delivery
Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Carton
Picture Example:
Download
N100 firewall mini PC
This Mini PC with an Intel N100 processor and four Ethernet ports is an all-in-one device designed to serve multiple purposes in a home or office network setup. This compact N100 mini PC integrates the roles of a computer, Firewall Router, and network server into a single unit, offering convenience and efficiency for managing network resources.
With four Ethernet ports, the N100 soft router supports multiple devices (max up to 64 devices) simultaneously without compromising on speed or reliability. These ports are essential for connecting wired devices such as computers, printers, and network storage solutions, enhancing the overall network infrastructure.
As a firewall, this n100 firewall provides security by filtering incoming and outgoing network traffic based on predetermined rules, safeguarding against potential threats such as viruses, malware, and unauthorized access.
Additionally, the mini PC functions as a mini network server appliance, enabling users to share resources like files, printers, and internet access across the network. It is particularly useful for small businesses or households where centralized management of shared resources is beneficial.
Product Details:
Processor: Intel N100 (4 core4 threads,6M Cache,up to3.40GHz, TDP: 6W)
Graphics Card: Intel UHD Graphics
Memory(RAM): 1x DDR5 SODIMM, Max Up to 16GB
Hard Disk(SSD): 1x M.2 NVME SSD
Support 1* M.2 NVME SSD + 1*2.5″ inch SATA 3.0
Support OS: Win11/Win10, Linux, Ubuntu, Pfsense, OPNsense, etc.

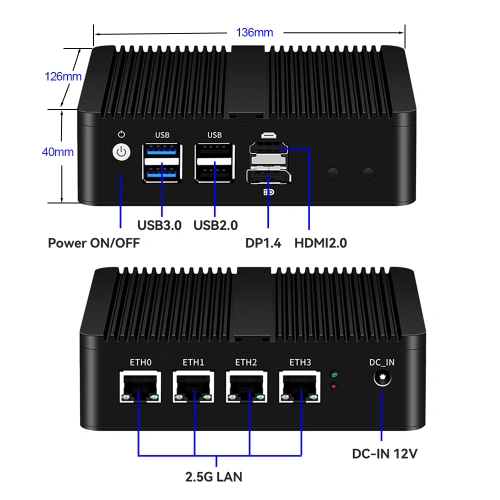

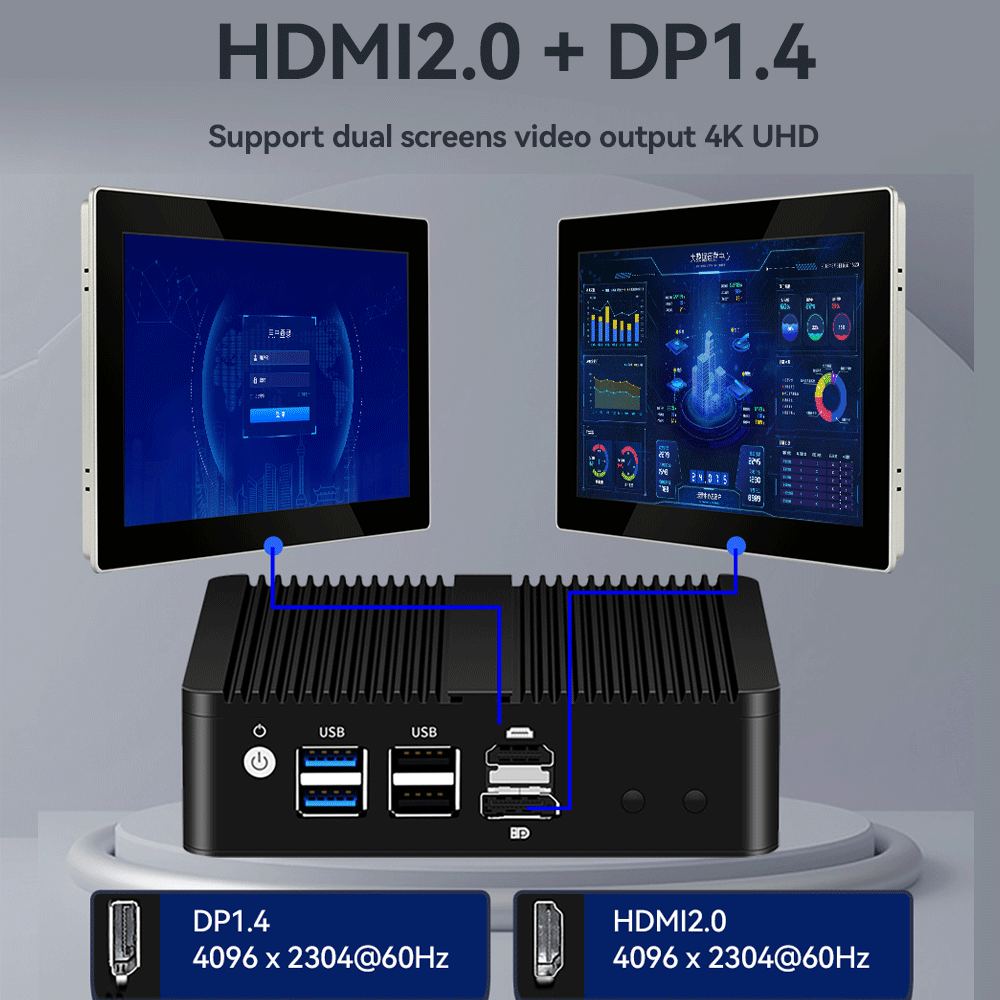

I/O Ports: Power on/off, 2 x USB 3.0, 2* USB 2.0, 1 x HDMI 2.0, 1x DP 1.4
4 × LAN (RJ45 Ports 2.5GbE Adaptive), 1x DC-IN 12V
Ethernet port: 4x 2.5GbE Intel i225-V RJ45
Extention: 1* mini-PCIE, support 3G/4G/WiFi; 1* USB 2.0
Support Custom: Watchdog Timer, TPM 2.0 built-in, DC24V, Din-Rail, etc.
Power: Input: AC 100-240V /50-60Hz, Output: DC 12V/5A 60W
Features: Wake UP on LAN, PXE Boot, S5 RTC Wake Settings, Restore AC power loss(Auto Power On).
Chassis Material: Aluminum Alloy
Operating Temperature: -20-60℃
Storage Temperature : -20℃~ 70℃(15- 35℃ recommended)
Relative Humidity: 5%~95% (non-condensing)
Gallery

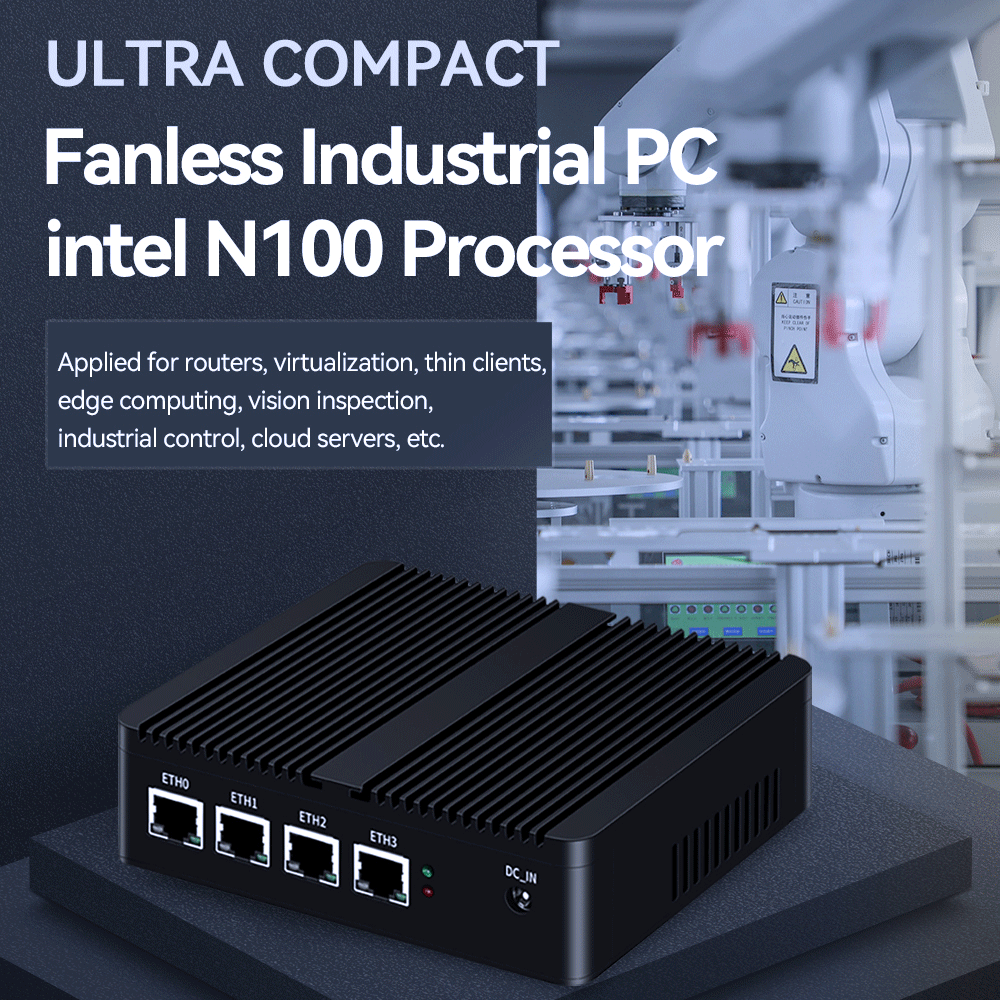

This N100 4 Nics mini PC is applied for soft routers, virtualization, thin clients, edge computing, vision inspection,
industrial control, cloud servers, etc.
Equipped with intel 12th generation processor N100, faster speed, and lower power draw, this N100 mini PC can meet the
higher demands of modern industries.

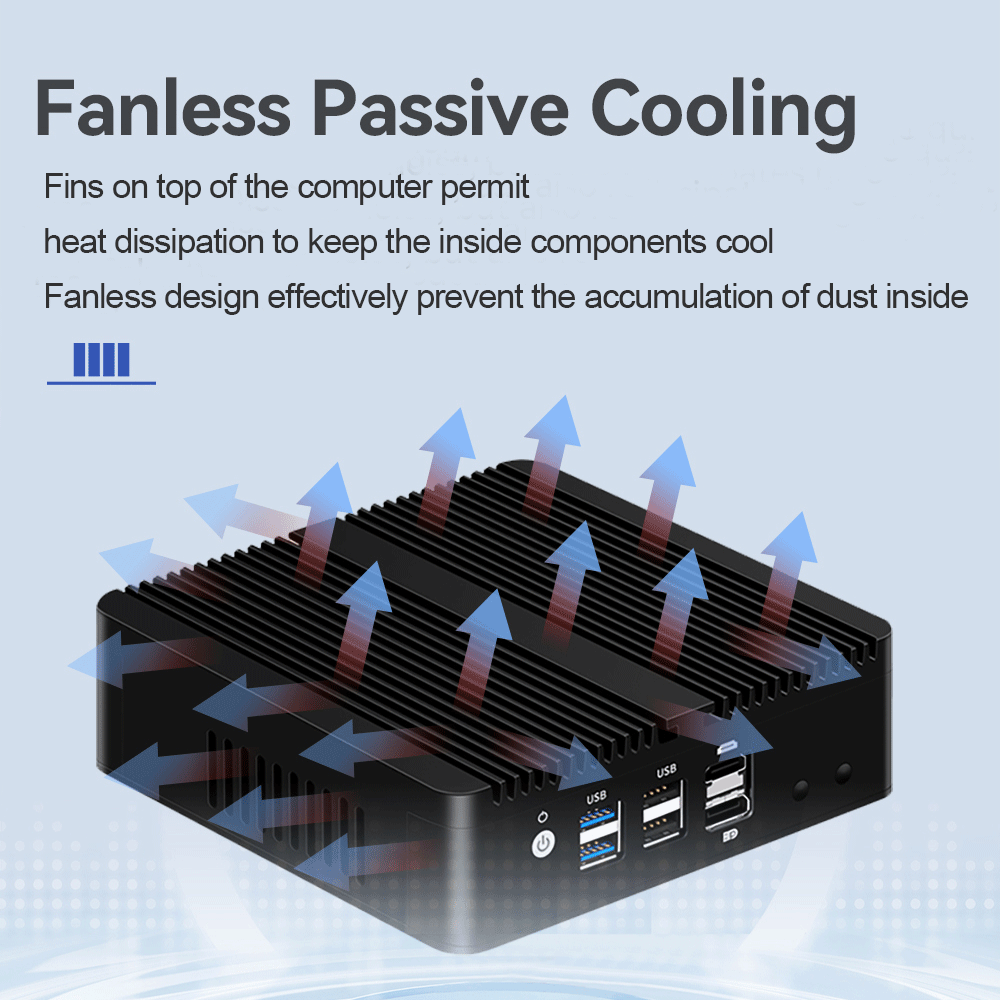

Fins on top of the N100 firewall mini PC permit heat dissipation to keep the inside components cool
The fanless design effectively prevents the accumulation of dust inside.

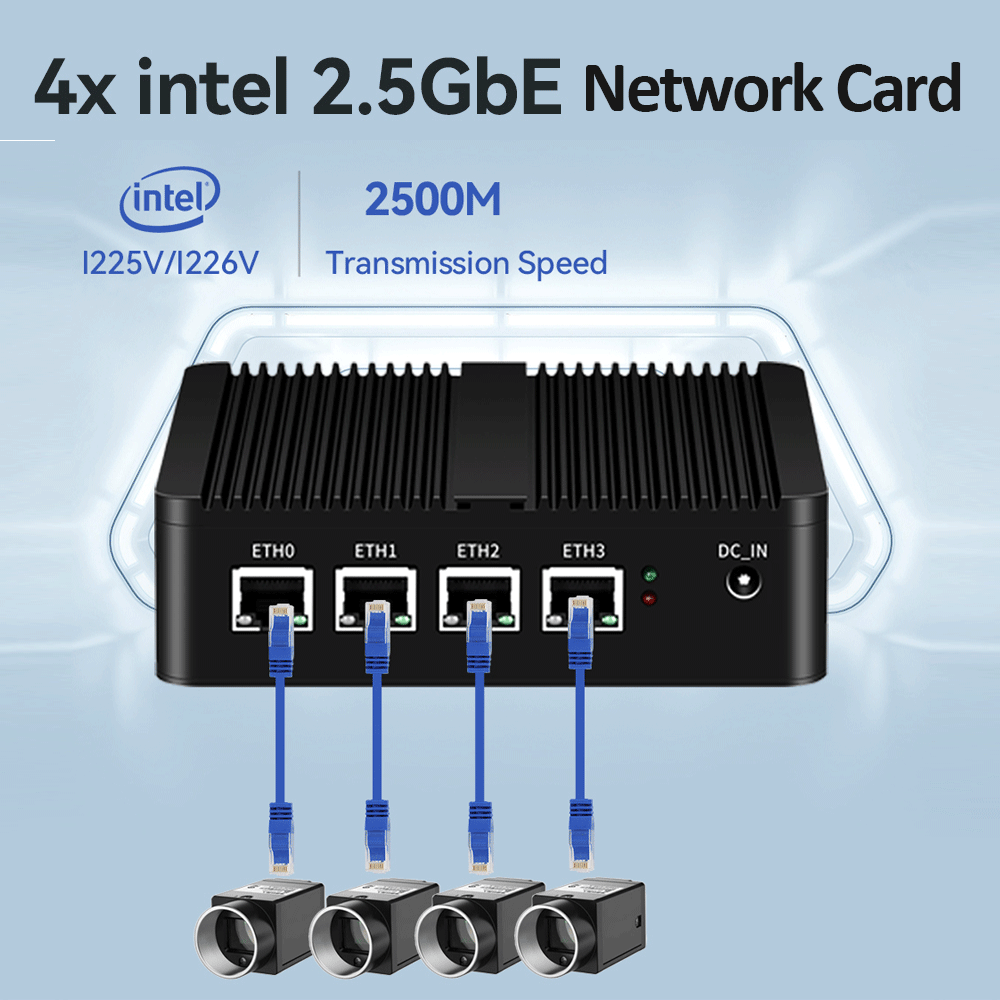

There are four ethernet ports with the N100 mini PC. Each ethernet port comes with an intel i225V or i226V network card chip whose transmission speed is 2500M.

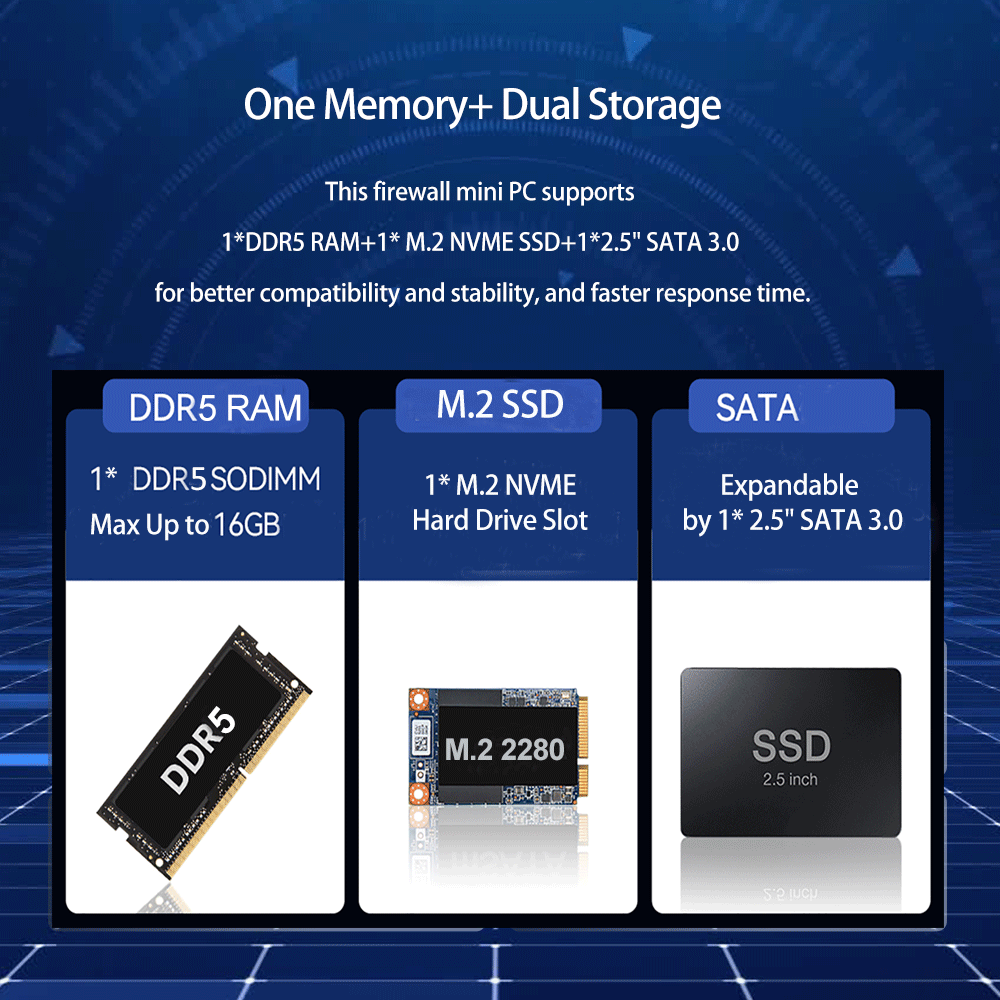

This firewall mini PC supports 1*DDR5 RAM+1* M.2 NVME SSD+1*2.5″ SATA 3.0 for better compatibility, stability, and faster response time.

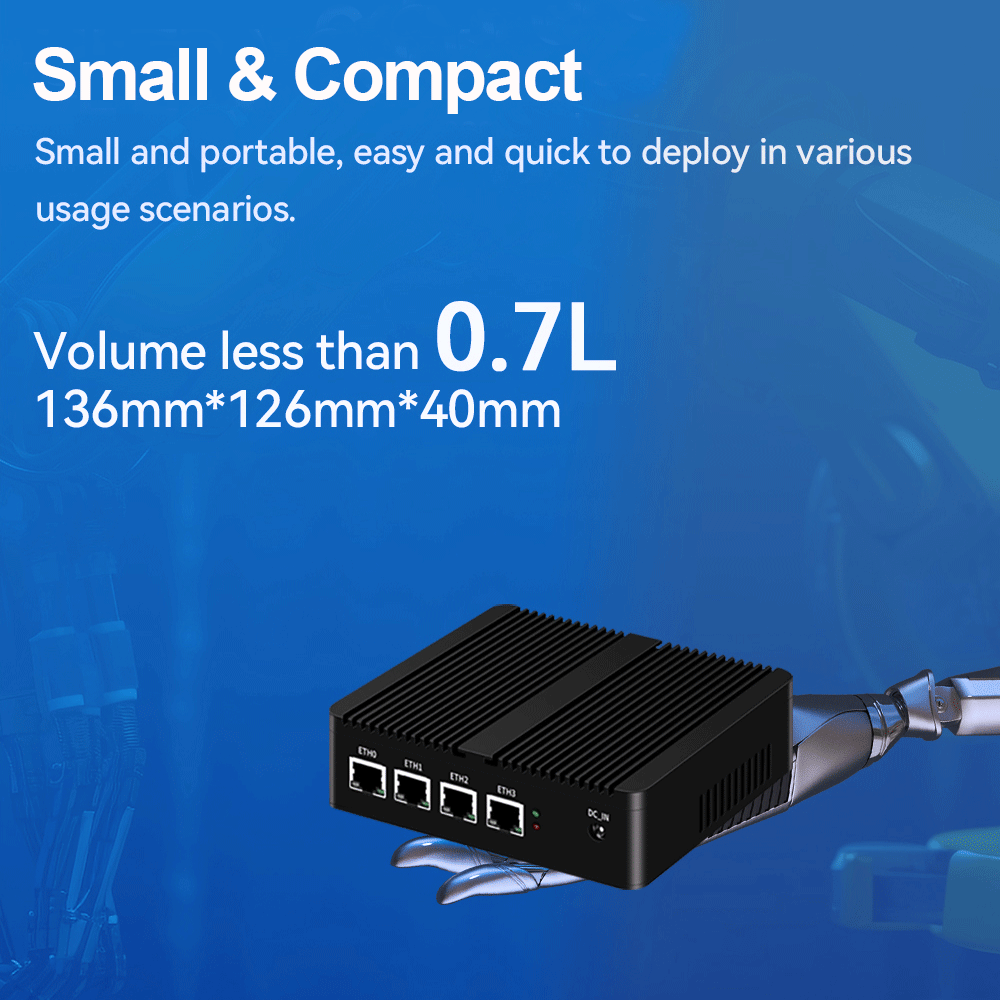

This N100 router is small and portable, easy and quick to deploy in various usage scenarios.

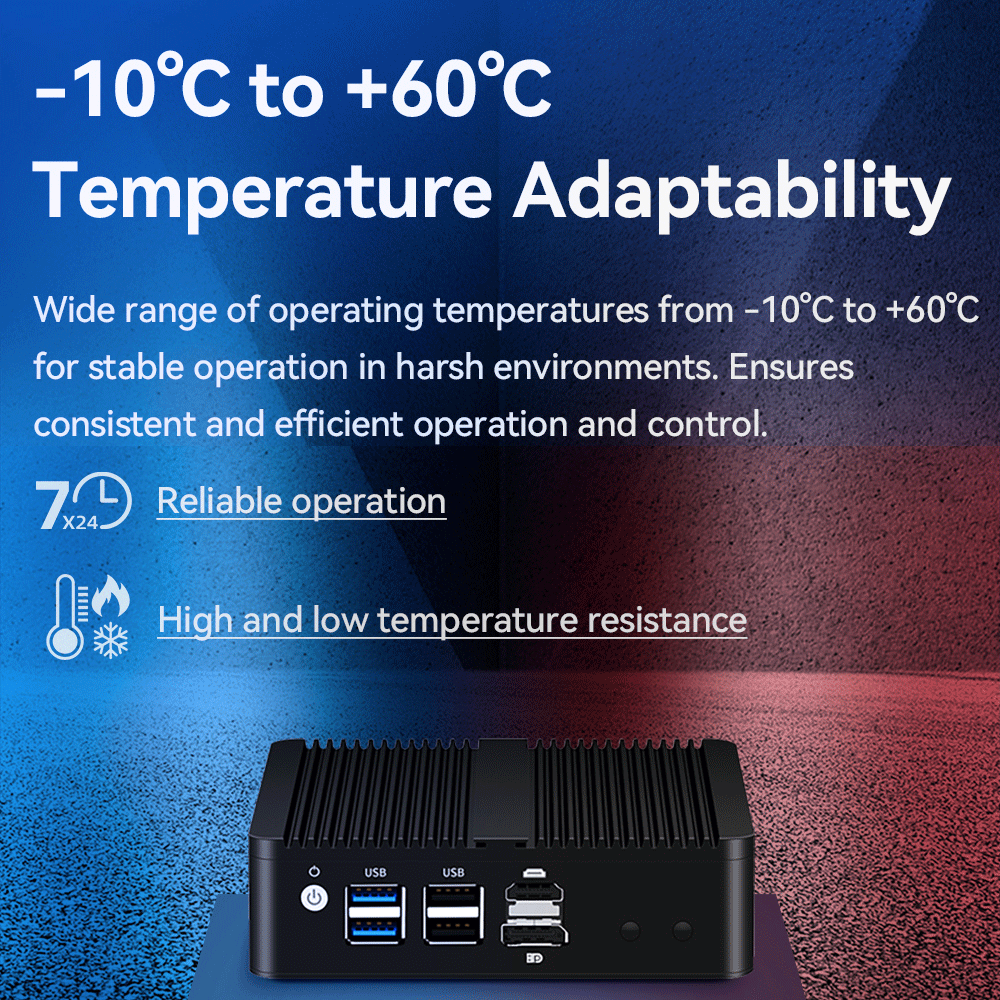

Its wide range of operating temperatures can be from -10°C to +60°C for stable operation in harsh environments, ensuring consistent and reliable operation and control.
