Chiều cao cảm biến tối đa 540 mm 21.260 in (28 kênh chùm)

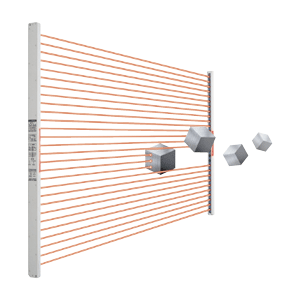

The thin resin case type area sensor has a sensing hight of 540 mm 21.260 in (28 beam channels), a beam pitch of 20 mm 0.787 in (minimum sensing object of ø30 mm ø1.181 in), and sensing range of 5 m 16.404 ft to meet a variety of needs.

Thân máy mỏng chỉ 13 mm, dày 0,512 inch
The slim-bodied NA2-N series fits right in your equipment, since it is only 13 mm 0.512 in thick and 30 mm 1.181 in wide. It dose not get in the way of your access to the machine.

6 loại chiều cao cảm biến
- In addition to the conventional 12, 16, and 20 beam channel types, this new lineup includes 8, 24, and 28 beam channel types. A wide model variation is provided with sensing heights from 540 mm 21.260 in (28 beam channels) to 140 mm 5.512 in (8 beam channels).
Có thể sử dụng trên toàn cầu
Nó tuân theo Chỉ thị EMC và đạt được UL Recognition. Các sản phẩm đã đạt được chứng nhận S-mark của Hàn Quốc cũng có sẵn. Hơn nữa, loại đầu ra PNP đang có nhiều nhu cầu ở Châu Âu cũng có sẵn.
Chỉ báo công việc trên diện rộng có thể nhìn thấy rõ ràng

Cả bộ thu và bộ phát đều có đèn báo công việc, rộng 102 mm 4,016, với đèn LED sáng màu đỏ. Khi đầu ra cảm biến và đầu vào chỉ báo công việc được kết nối, chỉ báo công việc có thể được sử dụng như một chỉ báo hoạt động lớn.
Ngăn chặn nhiễu để cài đặt song song

Bằng cách đặt các tần số phát xạ khác nhau cho hai cảm biến, có thể ngăn chặn được hiện tượng nhiễu lẫn nhau. Không có vấn đề gì ngay cả khi các cảm biến được lắp đặt song song để có phạm vi vùng phát hiện rộng. Hơn nữa, các tần số đã đặt có thể được xác định bằng số lần đèn báo phát sáng.
Kiểu chiếu sáng có thể lựa chọn
Hoạt động của chỉ báo công việc có thể được chọn bằng cách sử dụng công tắc chọn chế độ hoạt động.


Chức năng đầu vào kiểm tra thuận tiện (dừng phát xạ)
Đầu ra chùm tia có thể được dừng thông qua đầu vào của tín hiệu bên ngoài. Đây là chức năng đầu vào kiểm tra hữu ích (dừng phát xạ) khi bắt đầu hoạt động.

| Number of beam channels | 8 | 12 | 16 | 20 | 24 | 28 | ||
|---|---|---|---|---|---|---|---|---|
| Model No. | NPN output | NA2-N8 | NA2-N12 | NA2-N16 | NA2-N20 | NA2-N24 | NA2-N28 | |
| PNP output | NA2-N8-PN | NA2-N12-PN | NA2-N16-PN | NA2-N20-PN | NA2-N24-PN | NA2-N28-PN | ||
| CE marking directive compliance | EMC Directive, RoHS Directive | |||||||
| Sensing height | 140 mm 5.512 in | 220 mm 8.661 in | 300 mm 11.811 in | 380 mm 14.961 in | 460 mm 18.110 in | 540 mm 21.260 in | ||
| Sensing range | 5 m 16.404 ft | |||||||
| Beam pitch | 20 mm 0.787 in | |||||||
| Sensing object | φ30 mm φ1.181 in or more opaque object (completely beam interrupted objects) | |||||||
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | |||||||
| Power consumption | Emitter | Job indicator ON | 0.7 W or less | 0.8 W or less | 0.9 W or less | 1.0 W or less | 1.1 W or less | 1.2 W or less |
| Job indicator OFF | 0.6 W or less | 0.7 W or less | 0.8 W or less | 0.9 W or less | 1.0 W or less | 1.1 W or less | ||
| Receiver | Job indicator ON | 0.7 W or less | 0.8 W or less | 0.9 W or less | 1.0 W or less | 1.1 W or less | 1.2 W or less | |
| Job indicator OFF | 0.6 W or less | 0.7 W or less | 0.8 W or less | 0.9 W or less | 1.0 W or less | 1.1 W or less | ||
| Output | <NPN output type> NPN open-collector transistor • Maximum sink current: 100 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)<PNP output type> PNP open-collector transistor • Maximum source current: 100 mA • Applied voltage: 30 V DC or less (between output and +V) • Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current) | |||||||
| Utilization category | DC-12 or DC-13 | |||||||
| Output operation | ON when all beam channels are received (OFF when one or more beam channels are interrupted) | |||||||
| Short-circuit protection | Incorporated | |||||||
| Response time | 10 ms or less (12 ms or less when the interference prevention function is used) | |||||||
| Indicators | Emitter | Emitting indicator: Green LED x 2 (light up during emission; one LED lights up for Frequency A setting, both LEDs light up for Frequency B setting) Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch) | ||||||
| Receiver | Operation indicator: Red LED (lights up when one or more beam channels are interrupted) Stable incident beam indicator: Green LED (lights up when all beam channels are stably received) Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch) * When an excess current flows through the output, the stable incident beam indicator and the operation indicator on the receiver blink simultaneously due to operation of the short-circuit protection circuit. | |||||||
| Interference prevention function | Incorporated | |||||||
| Test input (emission halt) function | Incorporated | |||||||
| Pollution degree | 3 (Industrial environment) | |||||||
| Protection | IP40(IEC) | |||||||
| Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: –10 to +60 ℃ +14 to +140 ℉ | |||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||||
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face | |||||||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | |||||||
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | |||||||
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each | |||||||
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each | |||||||
| Emitting element | Infrared LED (Peak emission wavelength: 870 nm 0.034 mil (Note 3), modulated) | |||||||
| Material | Enclosure: Heat-resistant ABS, Lens cover: Polyester, Indicator cover: Acrylic | |||||||
| Cable | 0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long | |||||||
| Cable extension | Extension up to total 25 m 82.021 ft is possible for both emitter and receiver, with 0.2 mm2, or more, cable. | |||||||
| Weight (Total weight of emitter and receiver) | Net weight: 350 g approx. Gross weight: 550 g approx. | Net weight: 400 g approx. Gross weight: 600 g approx. | Net weight: 450 g approx. Gross weight: 650 g approx. | Net weight: 500 g approx. Gross weight: 700 g approx. | Net weight: 570 g approx. Gross weight: 750 g approx. | Net weight: 650 g approx. Gross weight: 800 g approx. | ||
Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
2) Obtain the current consumption from the following equation.
Current consumption = Power consumption ÷ Supply voltage
(e.g.) In case of NA2-N8 (when job indicator lights up)
When the supply voltage is 12 V, the current consumption of the emitter is: 0.7 W ÷ 12 V ≈ 0.058 A = 58 mA.
3) Peak emission wavelength has been changed from production in March, 2017.
