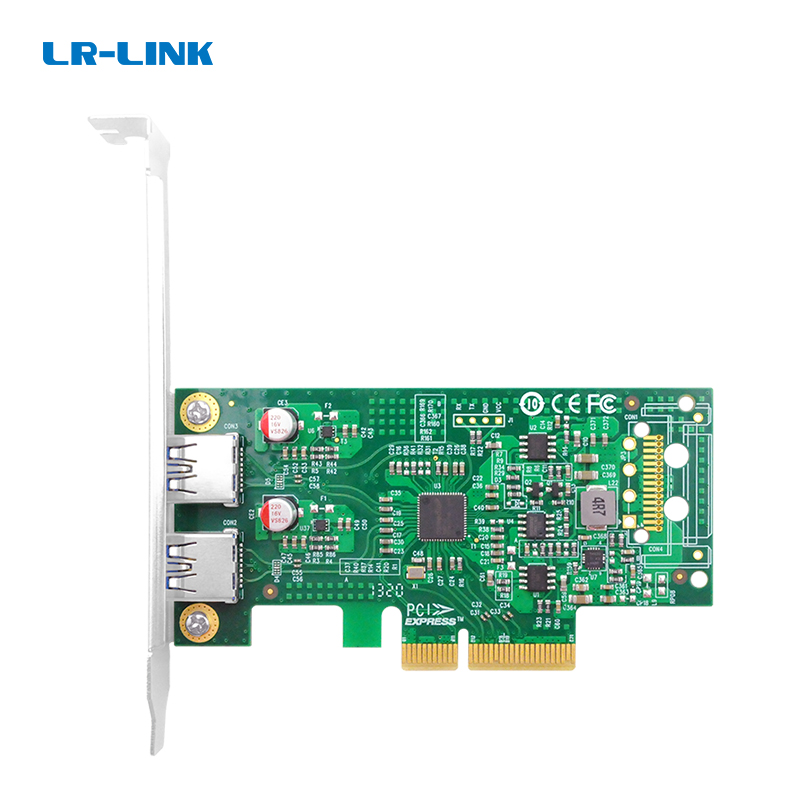

LRSU3A42-2A
Model：LRSU3A42-2A
Name：2 Port 10Gb/s PCIe x4 USB 3.1 Adapter
Chipset：ASMedia 3142
Interface Type：2*USB3.1 Type-A
Host Bus Type：PCIe 3.0 x4
Transfer Speed: 10Gb/s
Name：2 Port 10Gb/s PCIe x4 USB 3.1 Adapter
Chipset：ASMedia 3142
Interface Type：2*USB3.1 Type-A
Host Bus Type：PCIe 3.0 x4
Transfer Speed: 10Gb/s
Khuyến mãi khi mua ONLINE hoặc gọi Hotline
LRSU3A42-2A is based on ASM 3142 PCIe to 2 ports USB 3.1 interface conversion card, supports PCIe 3.0 and USB 3.1 specifications, Support 10 Gbp high speed, bridge the PCIe interface to the two ports of USB 3.1, so that the external storage device has higher transmission Input rate . USB 3.1 is twice as fast as USB 3.0 and much faster than USB 2.0. It can connect two USB 3.1 device and backward compatible with USB 3.0, USB 2.1, USB 2.0, USB 3.1, PCIe 3.0, PCIe 2.1, PCIe 2.0 interface specification.
Rock Series: LR-LINK PCIe2.0 x4 4P Type A 5Gb USB 3.0 Adapter LRSU9A72-4A(3U)
• ASM3142 chip, USB3.1 Host controller, bridge PCI Express to 2 port
USB3.1.
• Up to 10Gbps bandwidth performance.
• Backward compatible with USB2.0 function and device.
• PCIe X4 interface,compatible with slot x8,x16.
• 2 standard USB3.1 type A interfaces, support 10G/5G/480M USB data
transfer rate.
• Compliant with USB 3.1 Gen2.
• Support multiple USB devices operating at the same time.
• Each USB port provides the maximum output: +5VDC/900mA.
• Support Wake On LAN of USB keyboard or mouse devices.
• Support Control, Bulk, Stream, Interrupt, Isochronous.
• Support USB device hot-plugging.
LRSU3A42-2A | |
Model | LRSU3A42-2A |
I/O Controller | ASM3142 |
Drive Connector | USB Type-A |
PCB size |
Skinny short external |
Weight | 60g |
PCIe interface card type |
x4 channel, and
PCI Express 2.0, PCI |
SATA supply voltage | 12V±8% 5V±9% |
Power dissipation | 1.5W |
Bracket |
Metallic support: |
Working Humidity | 5% – 95% |
Working Temperature |
0°C – 60°C (32°F – |
Storage Temperature | -20°C–70°C |
Connector | USB3.1 |
System Requirements |
With an available PCI Express |
