Name: LRES1053PT
Brand: THIẾT BỊ TỰ ĐỘNG HÓA ANTECH
SKU: 1101
Availability: InStock
Rating: 5 (1 reviews)

LRES1053PT

– Supports 6 network rates, including 10M/100M/1G/2.5G/5G/10Gbps;
– Supports PXE and UEFI functions;
– Support for packets up to 16 KB (Jumbo Frames).

Khuyến mãi khi mua ONLINE hoặc gọi Hotline

1 Miễn phí vận chuyển toàn quốc
2 Miễn phí khảo sát tư vấn
3 Áp dụng cho khách hàng gọi điện, đến trực tiếp hoặc chát!

Yêu cầu gọi lại Gọi điện xác nhận và nhân viên tư vấn ngay

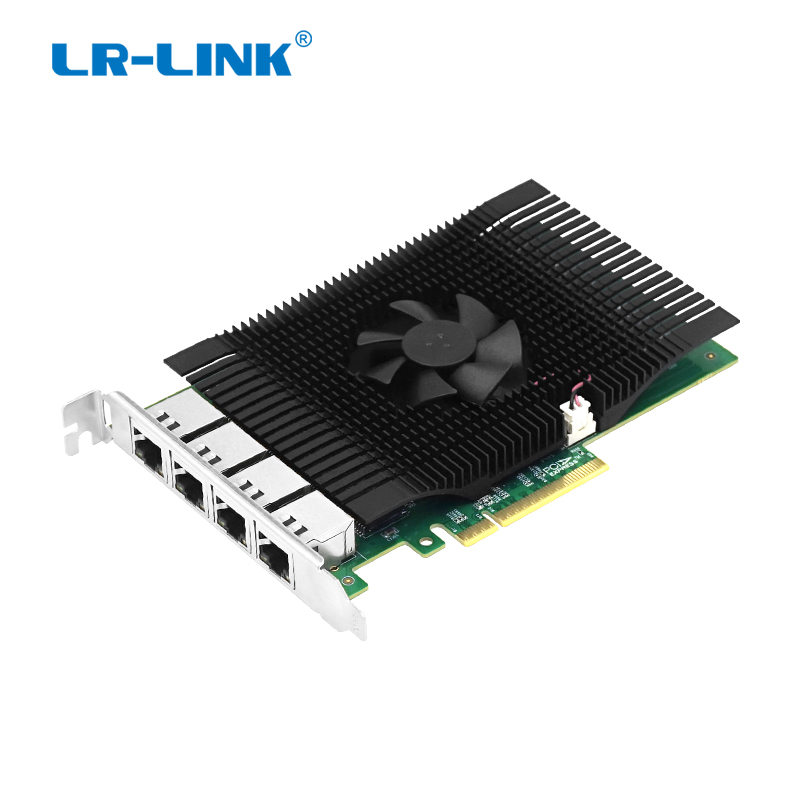

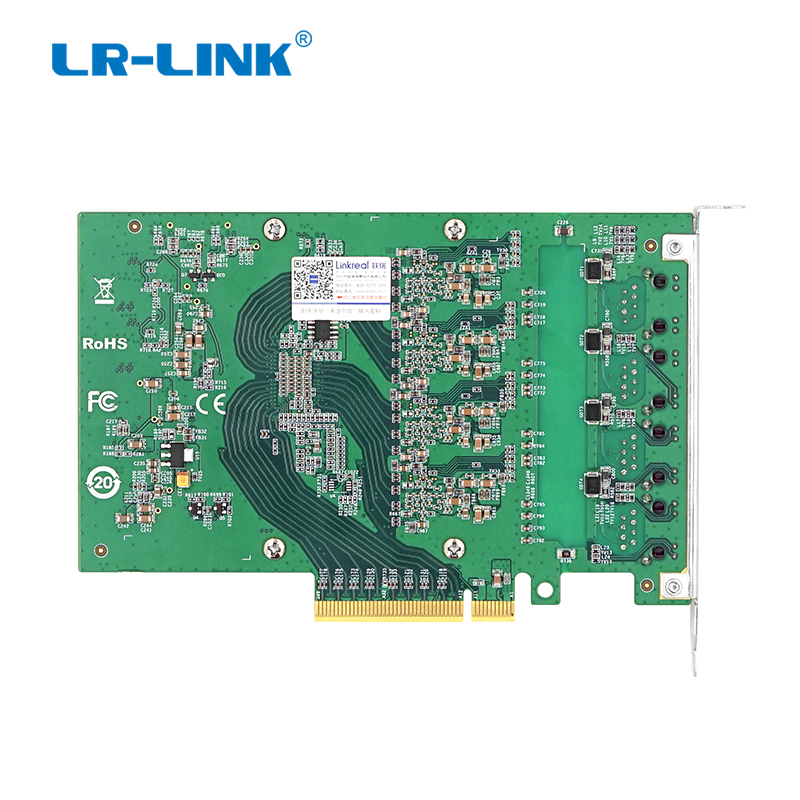

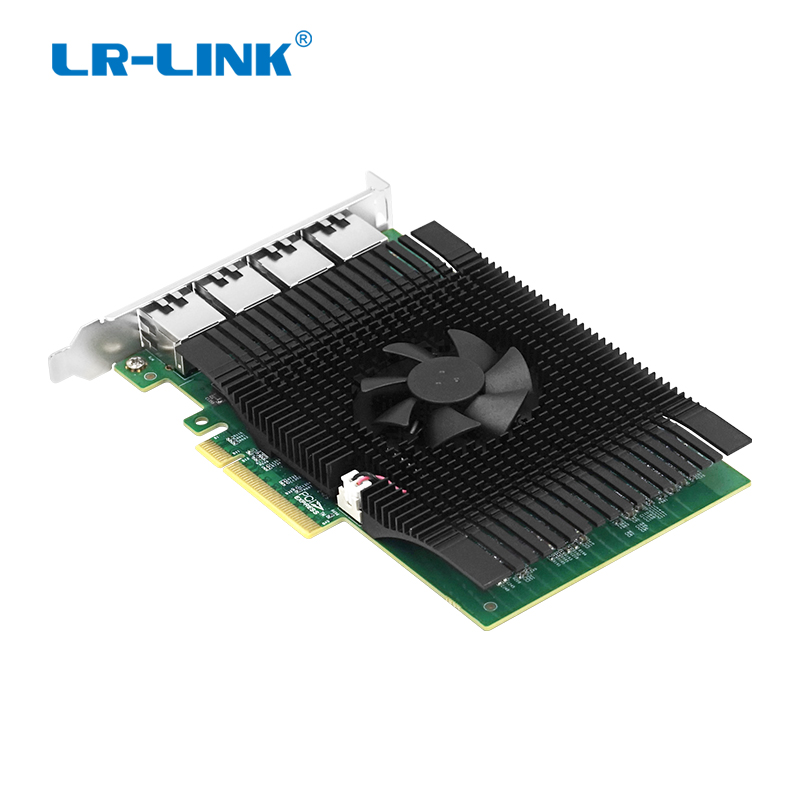

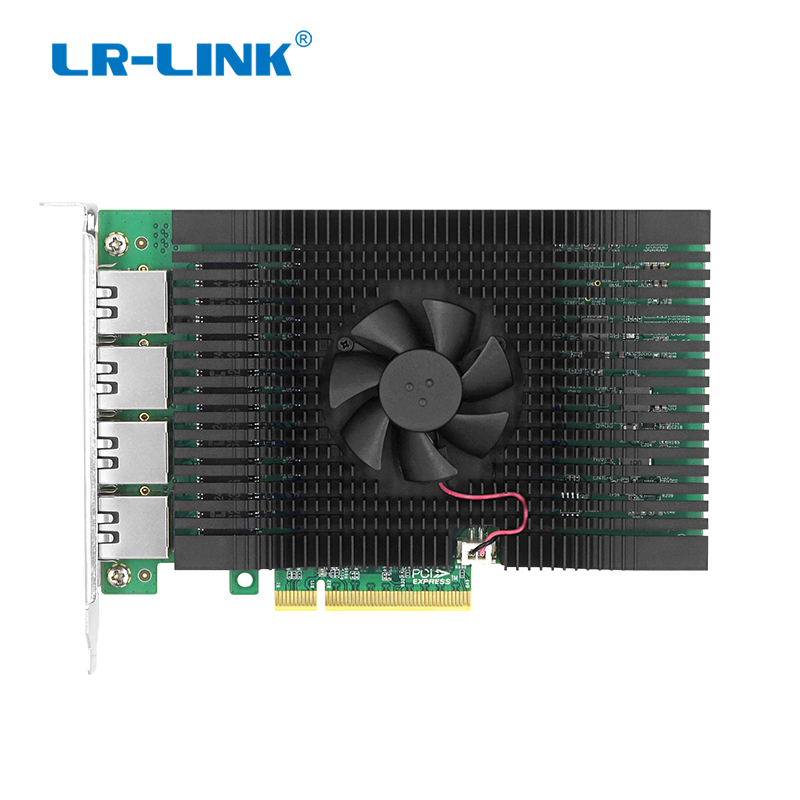

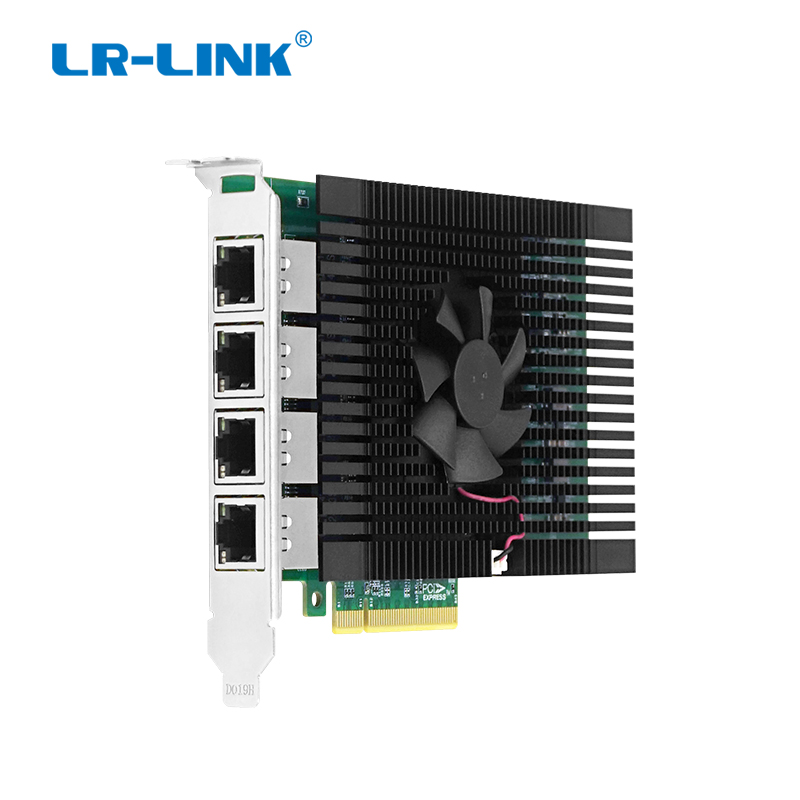

LRES1053PT is a PCIe3.0 x8 quad-port 10G Ethernet network adapter developed by Linkreal Co., Ltd. based on Aquantia AQtion AQC113 host controller solution, which is also compatible with PCIe x16 slots, and is a high-performance 4-port adapter. It is a high performance 4-port adapter. It is mainly used in industrial field vision inspection equipment, vision field clients, and fast mobile Ethernet data transmission equipment. The adapter has outstanding performance in data transmission, network bandwidth, average transmission delay, and actual packet transmission rate. It can connect four 10GigE industrial cameras at the same time and work stably, which meets the use of regular industrial control machine installation.

Model	LRES1053PT
Controller	Aquantia AQtion AQC113
Cable medium	Copper
Fiber Type	10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T100BASE-TX/10BASE-Te.
Bracket Height	Full Height
Min Power(w)	1.2
Max Power(w)	19.38
Connector	4*RJ45
Bus Type	PCIe v3.0 (8GT/s) x8
Data rate per port	10M/100M/1G/2.5G/5G/10Gbps
Power Supply	PCIe
Protocol Support	IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.1Q VLAN IEEE 802.3AD IEEE IEEE 802.1AS IEEE P802.1Qaz IEEE Std 802.1Qau IEEE P802.1Qbb
PXE	Yes
WoL	No
UEFI	Yes
SR-IOV	No
1588 PTP	Yes
Jumbo Frames	16KB
System Support	* Windows 10(21h2 and newer) * Windows 11 * Windows Server 2022 * RHEL/Centos7.3/7.6/7.9/8.2/8.3 * Deepin 15.11/20/20.6 * Ubuntu 16.04.3/18.04.5 * Ubuntu 20.04.1 * NewStartOS 3.2.2 * openKylin 0.7.5	* KylinOS V10 SP1 * NeoKylin7.6 * Zhongke Fangde Desktop Operating System 4.0 * Zhongke Fangde Server Operating System * UOS 20 * YMOS

10M/100M/1G/2.5G/5Gbps	Connection Status	(ACT)Orange Link+(LINK) Green Link
10M/100M/1G/2.5G/5Gbps	Transfer status	(ACT)Orange Link+(LINK) Green Blink
10Gbps	Connection Status	(ACT)Green Link+(LINK) Green Link
10Gbps	Transfer status	(ACT)Green Link+(LINK) Green Blink

Operating Temperature	0℃ to 50℃ (32 ℉ to 122 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC，CE，RoHS
